Preliminary (G2353065)

  1. Make sure that the vehicle has arrived in a sealed condition. Remove and discard the seals following local regulations.

    Make sure that the vehicle has arrived with the transportation seals intact.

    After parking the vehicle in a work bay, open the hood for access and record the vehicle details on the Pre-Delivery Inspection (PDI) check sheet.

    NOTE: Make sure the hood switch is not closed while the hood is open. Under certain conditions this may allow the vehicle to start. These conditions are:
    • Passenger compartment doors shut;
    • Driver's seat belt engaged; and
    • Ignition switched 'ON'.
  2. Check that the vehicle conforms to the specifications and options expected.

    Record the following details on the PDI  check sheet:

    • Invoice number
    • Customer name
    • Model
    • Registration number
    • Registration date
    • Odometer
    • Vehicle Identification Number (VIN)
    • Engine number
    • Smart key number
    • Activity key number (if equipped)
    • Paint code
    • Trim code
    • Battery test code
    • Locking wheel nut code (if equipped)
    NOTE:
    • The smart key number is the 8 - 10 digit code found on the label of the plastic bag containing the smart keys supplied with the vehicle.
    • The activity key number is the 9 digit code found on its storage case.
    G14046636Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Refer to the identification codes document for vehicle detail locations. For additional information, Refer to: IDENTIFICATION CODES

  3. Connect the Jaguar Land Rover approved battery support unit to the vehicle.

    Make sure that the correct standard of battery care is applied. For additional information, Refer to: BATTERY CARE REQUIREMENTS - INGENIUM I4 2.0L PETROL/TDV6 3.0L DIESEL/TDV8 4.4L DIESEL/V8 S/C 5.0L PETROL

    Connect the Jaguar Land Rover (JLR) approved battery support unit to the vehicle. For additional information, Refer to: BATTERY SUPPORT UNIT CONNECTION PROCEDURE

    CAUTION: Failure to charge the battery in this manner will cause the Battery Monitoring Sensor (BMS), to NOT register the charge increase. This can cause certain systems, including the Start/Stop system, to be inhibited during the first few days of driving while the BMS  re-calibrates.

    To charge the startup battery, connect the positive cable to the positive charge point and connect the negative cable to the negative charge point in the engine compartment.

  4. Connect the Jaguar Land Rover approved diagnostic equipment to the vehicle.
    G14046638Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Embedded Subscriber Identification Module (eSIM)  (if equipped).

    NOTE:
    • If the Know Your Customer identity verification has not been completed, the vehicle's embedded Subscriber Identification Module (eSIM) will remain suspended and the local eSIM  profile will not be downloaded during the PDI  process preventing the completion of the PDI.
    • A vehicle with a suspended eSIM  will still show as having a data connection (signal bars), but the eSIM  will not transmit or receive any data. To confirm the Know Your Customer status, retailers should search the VIN  through the Tata Communications eKYC portal accessible through the Global Retailer Portal.

    Check that the customer has completed the Know Your Customer identity verification process before completing the PDI  application.

    Run the Jaguar Land Rover Pre-Delivery Inspection application:

    NOTE: If the Customer has requested any additional keys, these must be with the vehicle positioned on the center console.
    • Make sure that all smart keys supplied with the vehicle are positioned on the center console.
    • Press the hazard warning lamp switch to switch the ignition on.
    • The JLR  approved diagnostic equipment will read the vehicle identification details from the vehicle.
    NOTE: Make sure the ignition is switched ON  during the auto-scan.
    • Ignition cycles are automatically controlled by the JLR  approved diagnostic equipment.
    • Check that the vehicle specifications read by the JLR  approved diagnostic equipment match the actual vehicle specifications.
    • Select the 'Service'  tab.
      • Select the 'Pre-Delivery Inspection'  tab.
      • Follow the on-screen instructions. This will set up telematics, disable the factory speed limiter and perform a full Diagnostic Trouble Code(s) (DTC) clear.
    NOTE: Make sure WiFi is turned OFF  before the starting the telematics activation procedure.
    • During telematics set-up:
      • The system will now search for signal coverage.
      • If it detects a good signal coverage, confirm to activate the telematics module.
      • A message will state if activation was successful, a red light will illuminate the SOS call button.
      • If unsuccessful or the JLR  approved diagnostic equipment states a poor signal coverage, the vehicle must be moved to an area of good signal coverage.
      • Press the information call button, after 10 seconds the illumination pattern will change. Release the button and the system will try to activate the telematics module.
        NOTE: This will time out after 2 minutes.
      • If successful, the information call light will stay illuminated for a short period and the SOS call button will be illuminated red.
      • If unsuccessful, repeat the process until the SOS call button is illuminated red.
    NOTE: This step applies to Russian market vehicles only.
    • Confirm the operation of the ERA-GLONASS system.
      • Press and hold the SOS call button.
      • Wait for a response from the call center operator.
      • Answer the call center operator with the phrase, 'Carrying out pre-delivery inspection'.
      • Response from the call center operator will be, 'Information received'. The call will then be disconnected.
      • If the call does not connect please call the telematics service desk using the normal process.

    Use the JLR  approved diagnostic equipment to interrogate any DTC  's that are present and rectify.

  5. Check the register of Service Action Bulletins, Recall Actions, or Update Prior to Sales (UPS) notices and make sure all open campaigns are completed during the PDI.

    Make sure that all service actions have been complete and there are no recall actions.

  6. InControl Touch Pro Map Installation  (if equipped).

    The engine must be running or in Electric Vehicle (EV) ready mode during the entire map update process to make sure that the vehicle's power-saving measures do not interrupt the update.

    For additional information, Refer to: INCONTROL TOUCH PRO MAP INSTALLATION (if equipped)  .

    For additional information, Refer to: INCONTROL TOUCH PRO MAP INSTALLATION - CHINA (China only)  .

    For additional information, Refer to: INCONTROL TOUCH PRO MAP INSTALLATION - JAPAN (Japan only)  .

    Dealer ordering center links:

    NOTE:
    • Administrator rights are required on your PC to download and install the InControl Map Update software.
    • Make sure a minimum of 20Gb of hard drive space is available on your PC when downloading the latest maps.
    • Europe:  http://www.navigation.com/doc-emea/
    • Latin America:  http://www.navigation.com/doc-amer/
    • Asia Pacific:  http://www.navigation.com/doc-apac/
    • USA:  http://www.navigation.com/doc-us/

    For further details of the navigation system, refer to the relevant section of the owner's handbook.

  7. Disconnect the Jaguar Land Rover approved diagnostic equipment from the vehicle.
  8. Disconnect the battery support unit from the vehicle.
  9. Startup battery test.
    CAUTION: DO NOT connect the tester to any other circuit or chassis point other than the startup battery negative terminal.
    NOTE:
    • The battery voltage check MUST  be performed to make sure the Intelligent Stop/Start system performs correctly. The startup battery must be in good condition prior to handing over the vehicle to the customer.
    • Only use JLR  approved battery test equipment to test the startup battery condition.

    Make sure the correct standard of battery care is applied. For additional information, Refer to: BATTERY CARE REQUIREMENTS - INGENIUM I4 2.0L PETROL/TDV6 3.0L DIESEL/TDV8 4.4L DIESEL/V8 S/C 5.0L PETROL

    The startup battery test is to be carried out before performing the remainder of the PDI  , while the startup battery is not connected to the vehicle.

    The startup battery must be tested to determine that it is in good condition and there is sufficient charge to complete the PDI.  Certain electrical systems require a precise voltage to operate correctly.

    Use the JLR  approved battery test equipment to check the battery charge condition.

    Record the startup battery voltage and test code on the PDI  check sheet. For additional information, refer to: NEW VEHICLE STORAGE FORM

    Check the startup battery terminals.

    CAUTION: Incorrectly installed terminals risk the startup battery discharging after handover to the customer.
    G14046639Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Make sure that the positive and negative terminals are fully installed and tightened to the correct torque. For additional information, Refer to: SPECIFICATIONS

    1. Auxiliary battery test  (Plug-in Hybrid Electric Vehicle (PHEV) only).

      Use the JLR  approved battery test equipment to check the battery charge condition.

      Record the auxiliary battery voltage and test code on the PDI  check sheet. For additional information, refer to: NEW VEHICLE STORAGE FORM

  10. Reconnect the Jaguar Land Rover approved battery support unit.
  11. Check the engine compartment fluid levels.
    CAUTION:
    • The engine must be left switched off for 10 minutes before checking the oil, to allow a full drain down. Failure to do this may result in overfilling.
    • The brake fluid level should be between MIN and MAX based upon brake pad wear. Only top-up the brake fluid to MAX after new brake pads have been installed.
    • If the brake fluid level is below MIN, visually check for any leaks.
    NOTE: There is some variation in the illustration depending on the vehicle specification, but the essential information is correct.

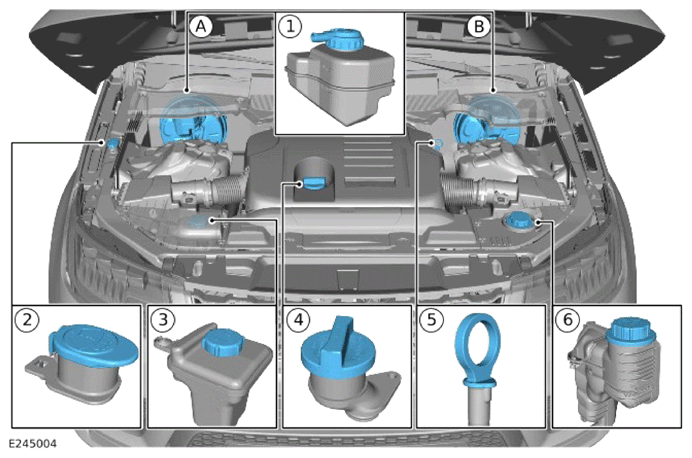

    G14106440Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Investigate the cause if any fluid levels are low.

    All engine variants:

    1. Brake fluid reservoir caps (beneath covers):
      1. Right hand drive vehicles. B.  Left hand drive vehicles.
    2. Washer fluid reservoir cap.
    3. Dynamic response fluid reservoir cap (if equipped, beneath cover).
    4. Oil filler cap.
    5. Oil level gauge (if equipped).
    6. Coolant expansion tank cap.

    Oil level check procedure  (Vehicles without manual oil level gauge).

    NOTE: Before checking the oil level make sure that the vehicle is on level ground, the engine oil has reached operating temperature and the engine has been switched off for 10 minutes. The system will not give an accurate reading until the oil level has stabilised.
    1. Switch the ignition ON and make sure that the vehicle is in Park.
    2. Select the 'Service Menu'  through the instrument cluster menu.
    3. Select 'Oil Level Display'  . The current oil level status and topping-up advice is displayed on the instrument cluster.
    4. Top-up as instructed.

    11a. Check and top-up the Plug-in Hybrid Electric Vehicle (PHEV) battery cooling system  (if equipped).

    NOTE: The high voltage battery coolant expansion tank is located behind the right side loadspace trim panel.
    G14046645Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    G14070526Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    G14070529Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Add coolant to the battery coolant expansion tank as required, until the MAX mark is reached.

  12. Cold air deflector  (if equipped).

    3.0L and 5.0L supercharged petrol engines only.

    G11997150Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Make sure that the cold air deflector has been installed to vehicles that operate in severe cold markets.

    (Finland, Norway, Sweden, Canada, Mongolia and Russia markets only).

    The cold air deflector should be installed to both of the multi-stage thermostat hoses and visually flat to the front of the engine. If necessary, push on the center of the deflector to firmly seat between both multi-stage thermostat hoses. Make sure the deflector is retained and is flat to the front of the engine.
