Rear Silencer (G2300914): Removal

WARNING: Observe due care when working near a hot exhaust system.

CAUTION: Make sure the exhaust system is supported at all times.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
Left side shown, right side similar.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the exhaust system.
Refer to: EXHAUST SYSTEM
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

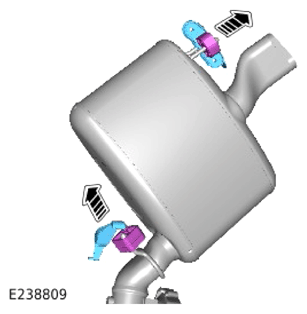

Remove the 2 exhaust hanger brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

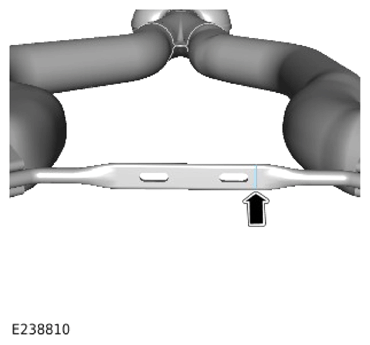

Use a suitable tool to cut the rear silencer cross brace in the marked position as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

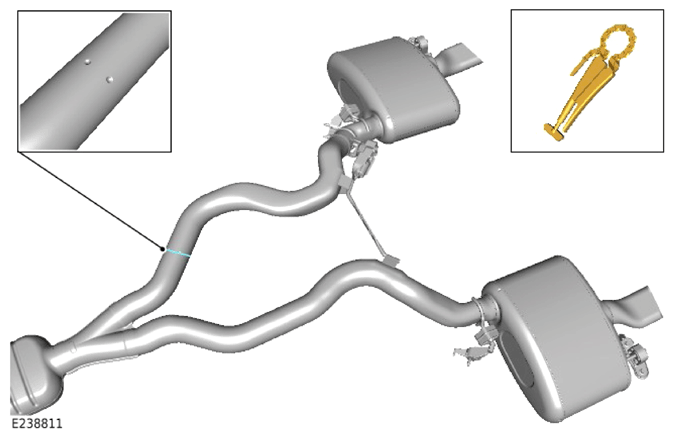

Use a suitable tool to cut and remove the rear silencer in the marked position as illustrated.
