Active Exhaust Actuator

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

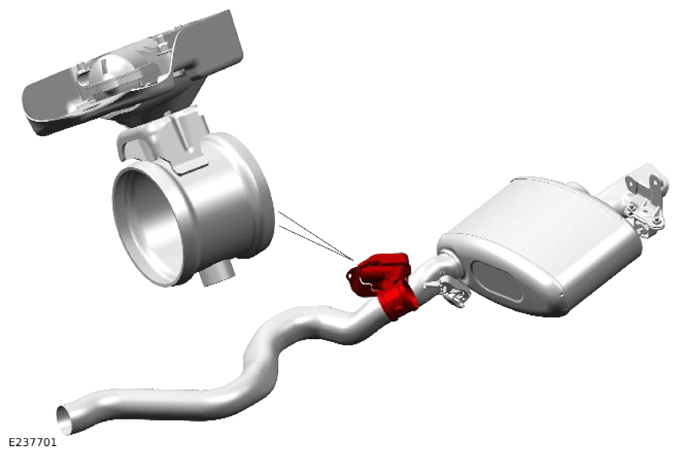

The active exhaust system allows exhaust gases to pass through the inlet pipe of the rear left silencer. As a result it produces louder exhaust sound and enhances the engine performance. The active exhaust valve and actuator assembly is located in the inlet pipe of the rear left silencer. The active exhaust actuator has a power supply from the Battery Junction Box (BJB). The operation of the active exhaust actuator is controlled by the Powertrain Control Module (PCM).
