Exhaust System - INGENIUM I6 3.0L Petrol -- Range Rover Sport/L494
>>
Exhaust System - INGENIUM I6 3.0L Petrol (G2299969)
>>
Description And Operation
>>
Exhaust System - INGENIUM I6 3.0L Petrol (G2300016)
>>
Component Location

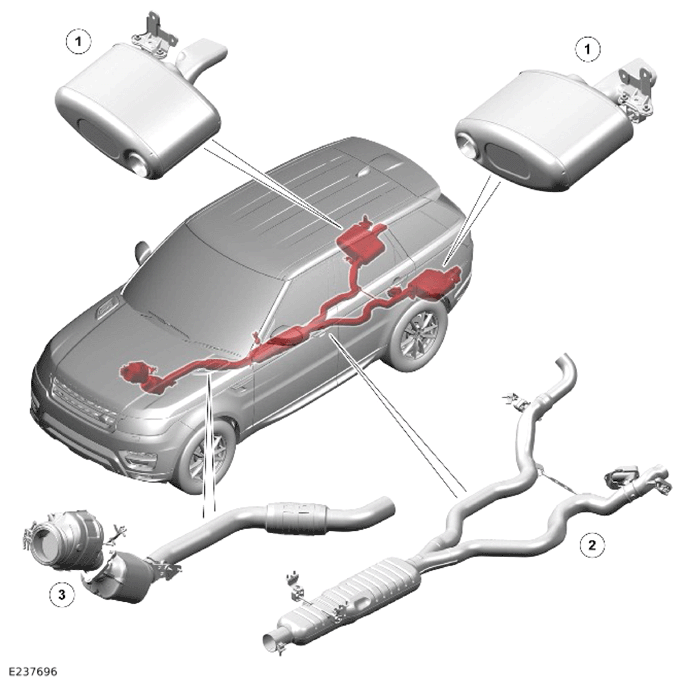

Component Location
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM
DESCRIPTION
1
Rear exhaust section
2
Center exhaust section
3
Front exhaust section
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
