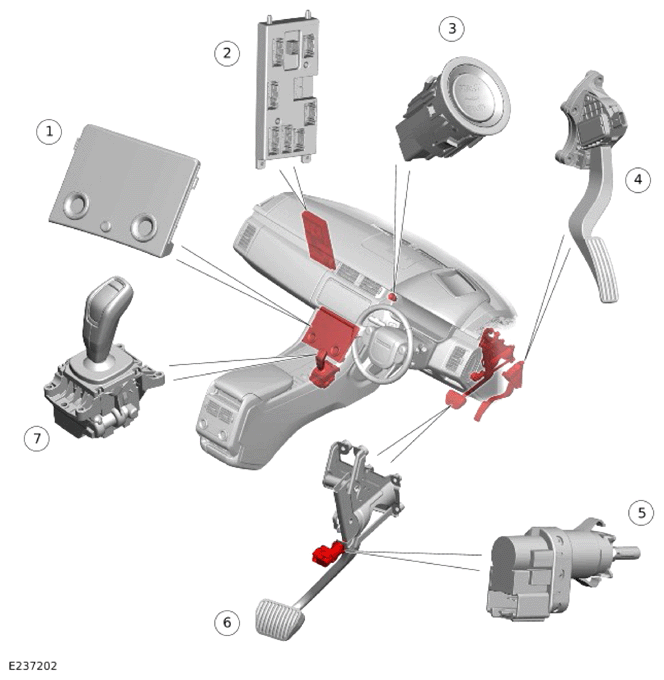

Component Location - 2 Of 2
NOTE:
Right Hand Drive (RHD) variant shown, Left Hand Drive (LHD) variant is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Interactive Control Display Module (ICDM) |
| 2 | Body Control Module (BCM)/Gateway Module A (GWM) |
| 3 | Ignition switch |
| 4 | Accelerator pedal |
| 5 | Brake pedal switch |
| 6 | Brake pedal |
| 7 | Transmission Control Switch (TCS) |
