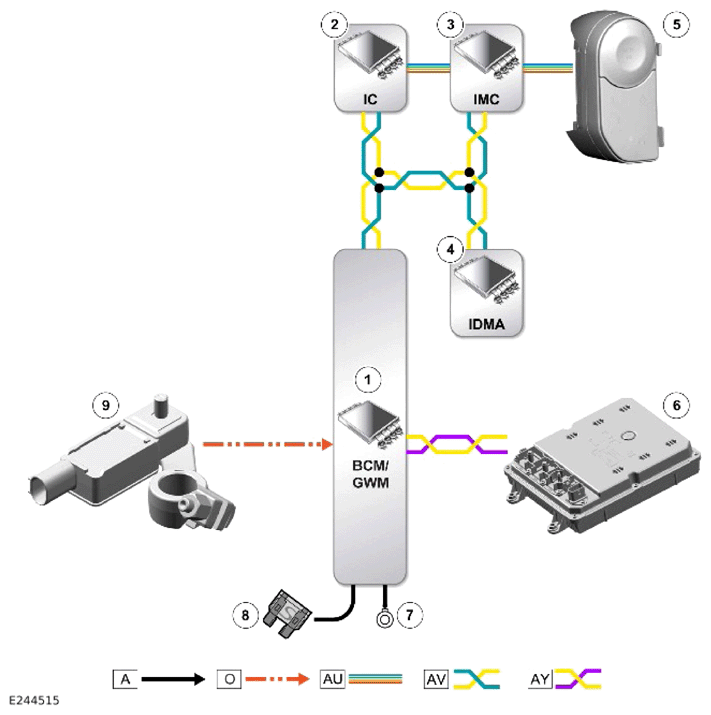

Control Diagram - 1 Of 1
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN): AU = AUTOMOTIVE PIXEL LINK 2 (APIX2): AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS: AY = HS CAN POWER MODE ZERO SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) |
| 2 | Instrument Cluster (IC) |
| 3 | Infotainment Master Controller (IMC) |
| 4 | Interactive Display Module 'A' (IDMA) |
| 5 | Steering wheel switchpack - Left |
| 6 | Direct Current to Direct Current (DC/DC) converter |
| 7 | Ground |
| 8 | Power supply |
| 9 | Battery Monitoring System (BMS) control module |
