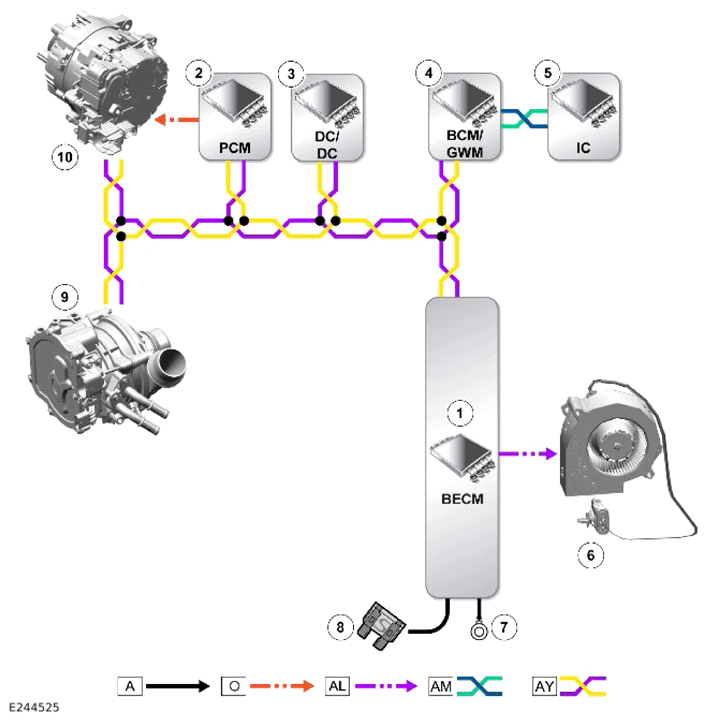

Control Diagram - 1 Of 2
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN): AL = PULSE WIDTH MODULATION (PWM): AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AY = HS CAN POWER MODE ZERO SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery Energy Control Module (BECM) - Integrated in the MHEV battery |
| 2 | Powertrain Control Module (PCM) |
| 3 | Direct Current to Direct Current (DC/DC) converter |
| 4 | Body Control Module/Gateway Module (BCM/GWM) |
| 5 | Instrument Cluster (IC) |
| 6 | MHEV battery electric cooling fan |
| 7 | Ground |
| 8 | Power supply |
| 9 | Electric supercharger |
| 10 | Belt Integrated Starter Generator (BISG) |
