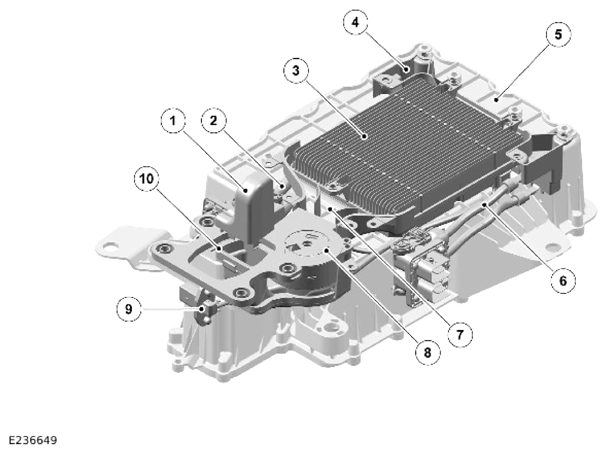

Direct Current To Direct Current Converter Housing
| ITEM | DESCRIPTION |
|---|---|
| 1 | Cooling air inlet |
| 2 | Startup and ground cables |
| 3 | Direct Current to Direct Current (DC/DC) converter |
| 4 | DC/DC converter busbar |
| 5 | DC/DC converter housing |
| 6 | MHEV battery cables |
| 7 | DC/DC converter electric cooling fan air duct - DC/DC converter electric cooling fan to DC/DC converter |
| 8 | DC/DC converter electric cooling fan |
| 9 | DC/DC converter housing wiring harness |
| 10 | Cooling air outlet |
The Direct Current to Direct Current (DC/DC) converter housing is located under the floorpan below the right front row seat.
The DC/DC housing contains the following:
- DC/DC converter
- DC/DC converter electric cooling fan
- DC/DC converter electric cooling fan air duct (quantity 2)
- DC/DC converter housing wiring harness
- DC/DC converter busbar
- MHEV battery cables and connector
- Startup battery cable and ground cable with connector.

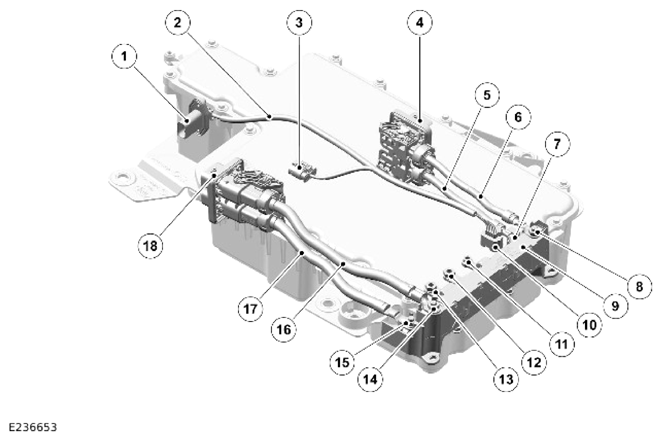

Wiring Harness, Cables and Busbar
| ITEM | DESCRIPTION |
|---|---|
| 1 | Main wiring harness connector |
| 2 | Direct Current to Direct Current (DC/DC) converter housing wiring harness |
| 3 | DC/DC converter electric cooling fan wiring harness connector |
| 4 | Startup battery and ground cables connector |
| 5 | DC/DC converter connector to startup battery cable |
| 6 | DC/DC converter ground cable |
| 7 | DC/DC converter busbar terminal - MHEV battery cable (ground) |
| 8 | DC/DC converter busbar terminal - MHEV battery cable (positive) |
| 9 | DC/DC converter busbar |
| 10 | DC/DC converter wiring harness connector |
| 11 | DC/DC converter terminal - MHEV battery (positive) |
| 12 | DC/DC converter terminal - Ground and MHEV battery (ground) |
| 13 | DC/DC converter terminal - Startup battery (12V positive) |
| 14 | DC/DC converter busbar terminal - Startup battery cable (12V positive) |
| 15 | DC/DC converter busbar terminal - Ground cable |
| 16 | Startup battery cable |
| 17 | Ground cable |
| 18 | Startup battery cable and ground cable connector |
The Direct Current to Direct Current (DC/DC) converter wiring harness connects the following:
- Main wiring harness
- DC/DC converter
- DC/DC converter electric cooling fan.
The DC/DC converter busbar provides the electric connections for the following:
- DC/DC converter
- MHEV battery (positive)
- Ground and MHEV battery (ground)
- Startup battery (12V positive)
- MHEV battery cable (positive)
- MHEV battery cable (ground)
- Startup battery (12V positive)
- Ground.
The MHEV battery cables have a light blue outer covering. The MHEV cables connect the MHEV battery to the DC/DC converter.
The startup battery cable connects the DC/DC converter to the vehicle 12V systems and the startup battery.
The ground cable connects both the DC/DC converter and the MHEV battery components to the vehicle body ground connection. This provides the ground connection for the following:
- DC/DC converter 12V electrical ground
- The MHEV battery components electrical ground
