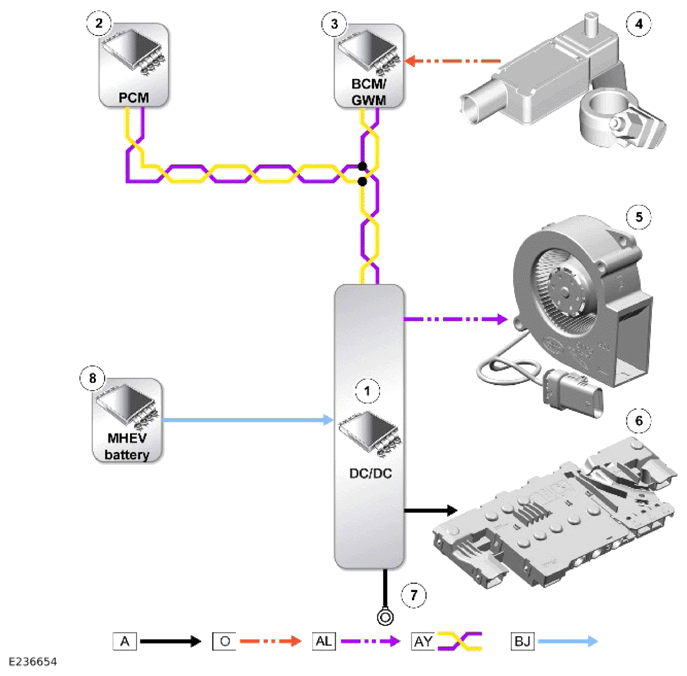

Control Diagram
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN): AL = PULSE WIDTH MODULATION (PWM): AY = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWER MODE ZERO SYSTEMS BUS: BJ = MHEV BATTERY CABLE.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Direct Current to Direct Current (DC/DC) converter |
| 2 | Powertrain Control Module (PCM) |
| 3 | Body Control Module/Gateway Module (BCM/GWM) |
| 4 | Battery Monitoring System (BMS) control module |
| 5 | DC/DC converter electric cooling fan |
| 6 | Battery Junction Box (BJB) |
| 7 | Ground |
