Brake Vacuum Pipes

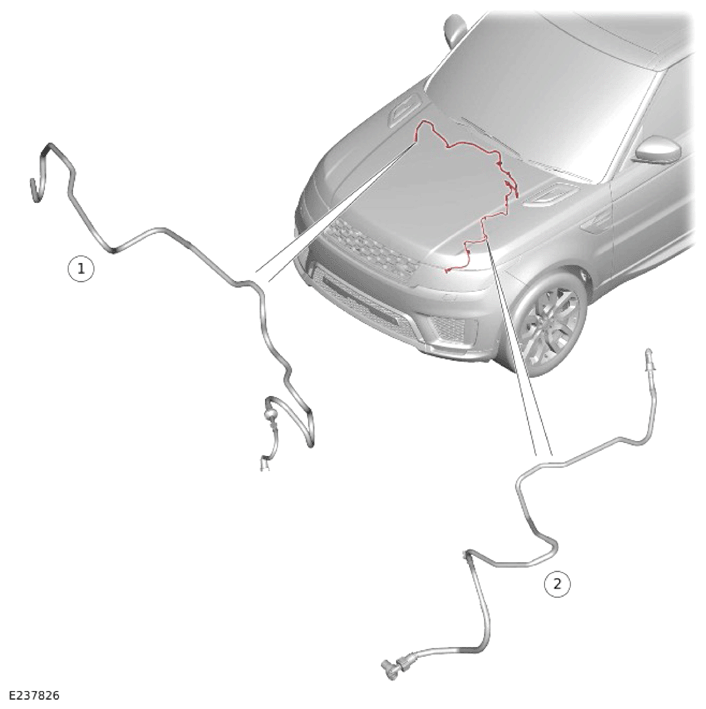

G15214053Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Brake vacuum pipe - Brake booster
2 Brake vacuum pipe - Engine

Preformed plastic pipes connect the brake booster to the brake vacuum pump to provide the vacuum for the brake booster. The brake vacuum pipe incorporates an in-line check valve. This prevents contamination from the brake vacuum pump to the brake vacuum pipes when the engine is switched off.
