Brake Booster

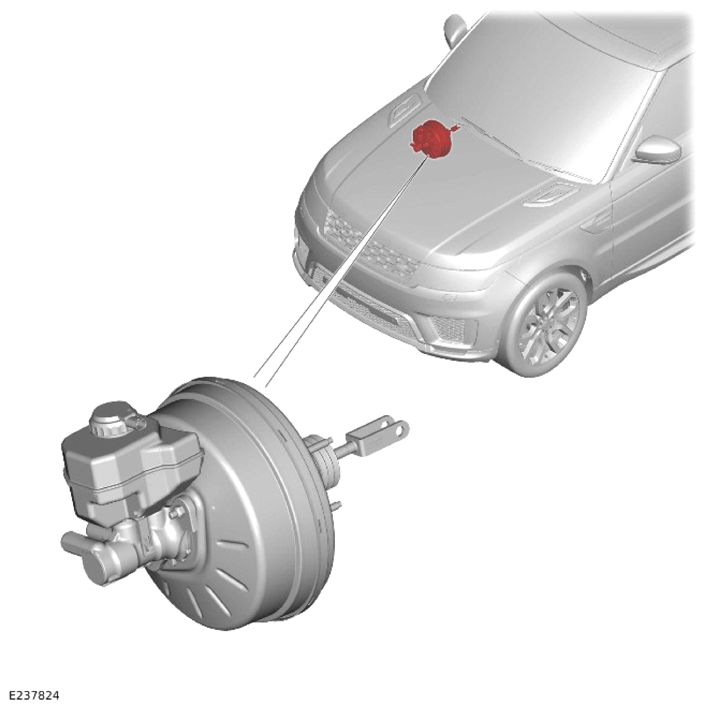

The brake booster is located on the driver side of the engine compartment. The brake booster is sealed to the bulkhead with a gasket and secured with 4 studs and locking nuts. The brake booster actuating push rod is attached to the brake pedal with a clevis pin. The brake booster output rod locates in the primary piston of the brake master cylinder.
The brake booster is a compact unit that occupies less space than a conventional brake booster, improving the vehicle's crash performance characteristics.
Rigid plastic brake vacuum piping connects the brake vacuum sensor to the brake booster. A check valve is installed in the piping to maintain the vacuum necessary for brake booster operation.
