Component Location

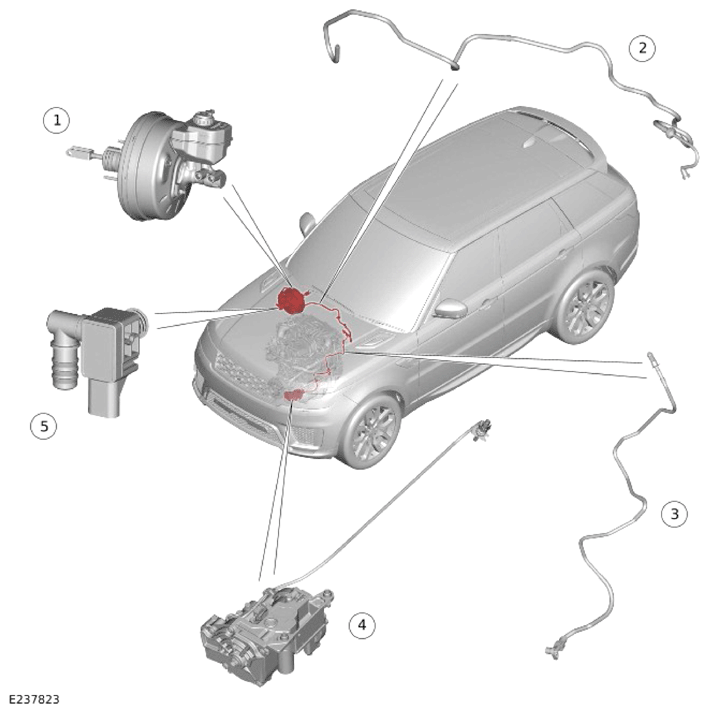

G15214051Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Brake booster
2 Brake vacuum pipe - Brake booster
3 Brake vacuum pipe - Engine
4 Variable flow oil pump with integral vacuum pump
5 Vacuum pressure sensor
