Roof Opening Panel Alignment (G928367)

76.84.82 SUN ROOF - ALIGN TO ROOF PANEL & ADJUST ALL DERIVATIVES 0.30
NOTE: This procedure contains some variation in the illustrations depending on the vehicle specifications, but the essential information is always correct.
  1. NOTE:
    • The roof opening panel must be closed
    • With the roof opening panel closed, check the alignment of the glass to the roof panel. The glass should be central in its aperture. Profile of rear glass panel to body: front edge, set flush or up to 1.0 mm (0.040") low; rear edge, set flush or up to 1.0 mm (0.040") high.

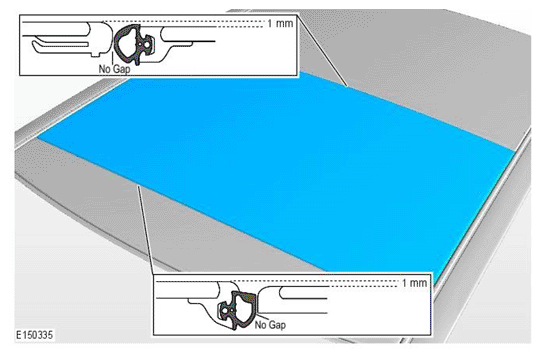

    G11704531Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Check the alignment of the roof opening panel.

    • The roof opening panel should be central in the roof opening.
  2. G11704532Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Raise the roof opening panel glass.

    • Open the roof opening panel shield.
  3. NOTE:
    • The step must be carried out on both sides.
    • RH shown LH similar.

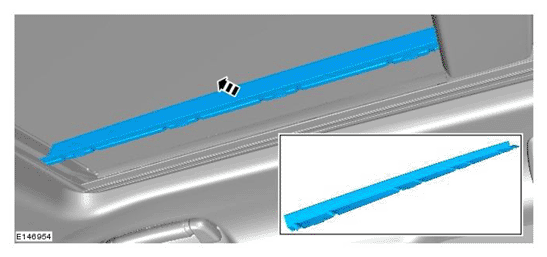

    G11704533Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the upper edges of the RH and LH roof opening panel side trims.

  4. NOTE:
    • The step must be carried out on both sides.
    • RH shown LH similar.

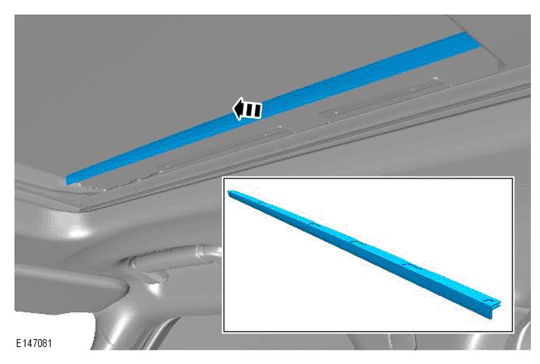

    G11704534Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the upper edges of the RH and LH roof opening panel side trims.

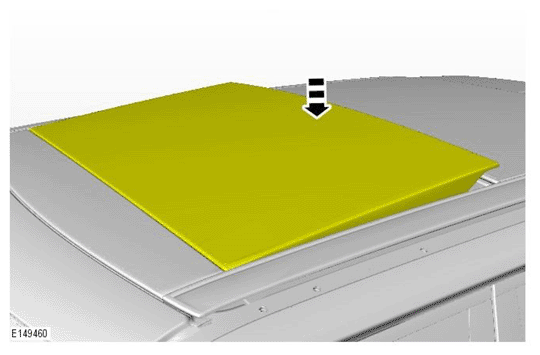

  5. G11704535Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Close the roof opening panel.

  6. NOTE: RH shown LH similar.

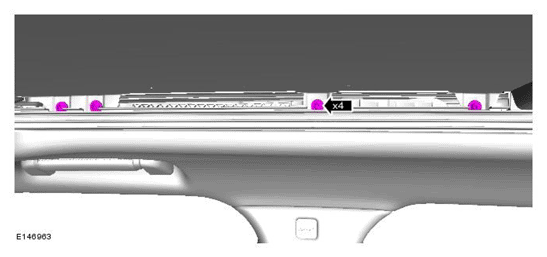

    G11704536Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Loosen the 4 screws.

  7. CAUTION: Make sure the glass laminate is not damaged during remove and installation.
    NOTE: With the roof opening panel closed, check the alignment of the glass to the roof panel. The glass should be central in its aperture. Profile of rear glass panel to body: front edge, set flush or up to 1.0 mm (0.040") low; rear edge, set flush or up to 1.0 mm (0.040") high.
    G11704531Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Align the roof opening panel glass.

  8. NOTE: Apply force to the top of the glass panel to aid alignment.

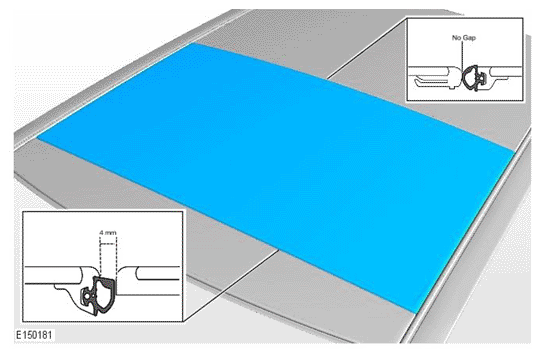

    G11704538Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Align the roof opening panel glass.

    • Tighten the screws to 5 Nm.
  9. NOTE:
    • RH shown LH similar.
    • This step requires the aid of another technician.
    G11704536Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    With assistance position the moving panel and tighten the fixings.

  10. NOTE:
    • The step must be carried out on both sides.
    • RH shown LH similar.

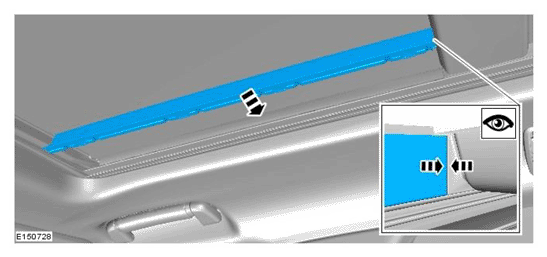

    G11704540Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Secure the upper edges of the RH and LH roof opening panel side trims.

  11. NOTE:
    • The step must be carried out on both sides.
    • RH shown LH similar.

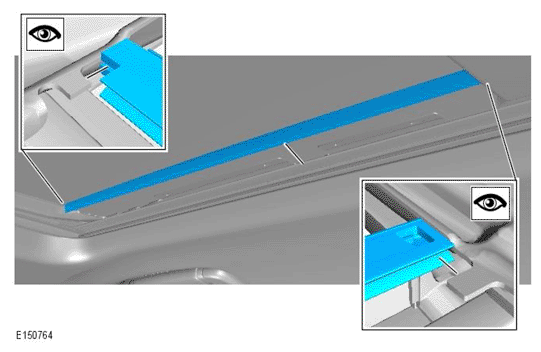

    G11704541Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Secure the upper edges of the RH and LH roof opening panel side trims.
