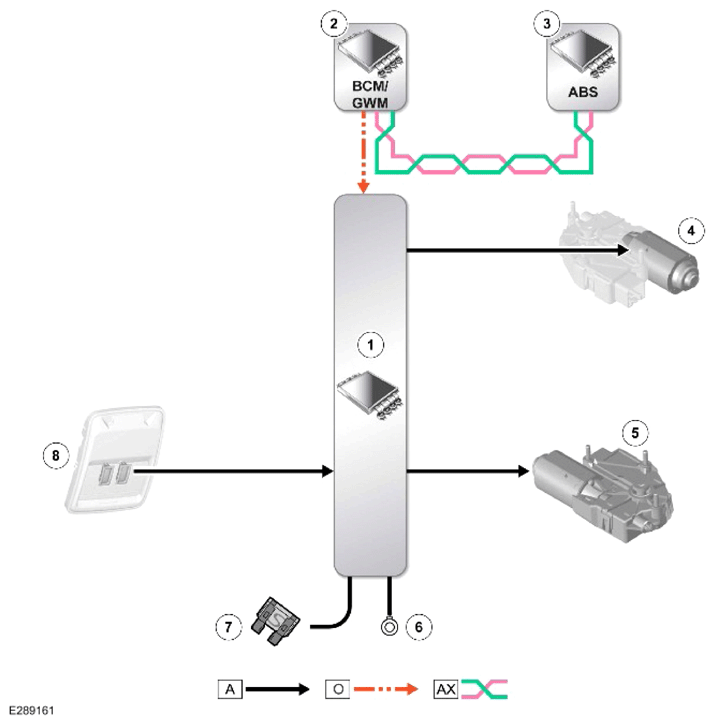

Control Diagram
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED: AX = FLEXRAY BUS: O = LIN
.
| ITEM |
DESCRIPTION |
| 1 |
Roof opening panel control module |
| 2 |
BCM
/GWM |
| 3 |
ABS |
| 4 |
Roof blind motor |
| 5 |
Roof opening panel motor |
| 6 |
Ground |
| 7 |
Power supply |
| 8 |
Roof blind switch and roof opening panel switch - Front overhead console |
