Roof Opening Panel Switches

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

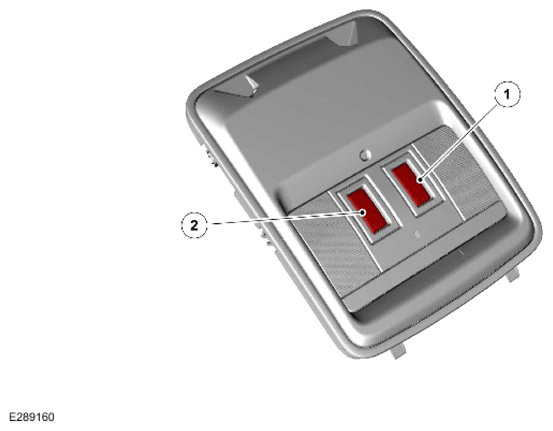

The roof opening panel and the roof blind are operated through the 2 way switches which are located in the front overhead console. The roof opening panel switch and the roof blind switch transmit the open and the close signals to the roof opening panel control module. The roof opening panel control module receives the open and the close signals on hardwired connection.
