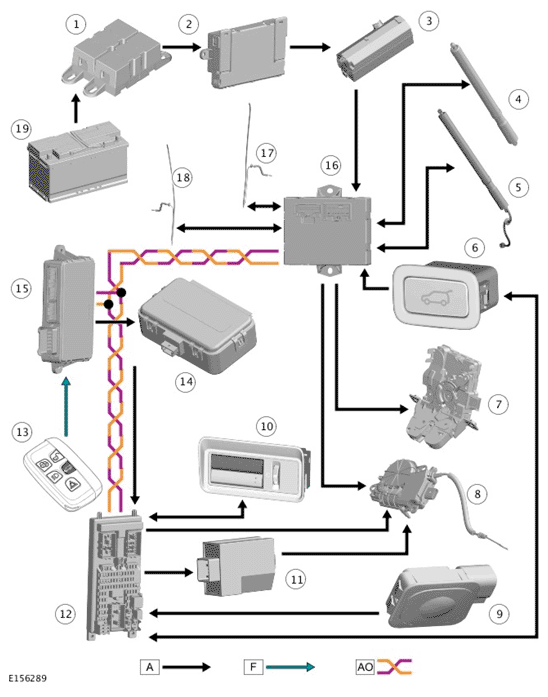

Control Diagram
NOTE:
A
= Hardwired; F
= Radio Frequency (Rf) Transmission; N
= Medium Speed Controller Area Network (Can)
Powered Tailgate
| Item | Description |
|---|---|
| 1 | Battery Junction Box (Bjb) 2 |
| 2 | Bjb |
| 3 | Rear Junction Box (Rjb) |
| 4 | Right Tailgate Actuator |
| 5 | Left Tailgate Actuator |
| 6 | Tailgate Global Close Switch |
| 7 | Tailgate Latch |
| 8 | Tailgate Soft Close Actuator |
| 9 | Tailgate Exterior Open/Close Switch |
| 10 | Tailgate Interior Open/Close Switch |
| 11 | Rf Filter |
| 12 | Central Junction Box (Cjb) |
| 13 | Tailgate Open/Close Switch - Smartkey |
| 14 | Rf Receiver |
| 15 | Remote Function Actuator (Rfa) |
| 16 | Tgcm |
| 17 | Left Tailgate Anti-Trap |
| 18 | Right Tailgate Anti-Trap |
| 19 | Battery |
