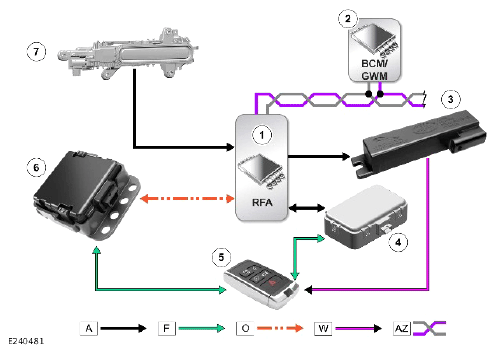

Control Diagram 4 Of 4 - Smart Key Recognition
A = HARDWIRED: F = RADIO FREQUENCY (RF) TRANSMISSION: O = LOCAL INTERCONNECT NETWORK (LIN) BUS: W = LOW FREQUENCY (LF) TRANSMISSION: AZ = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) BODY SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Remote Function Actuator (RFA) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Low Frequency (LF) antenna (quantity 4) |
| 4 | Remote function receiver |
| 5 | Smart key |
| 6 | Passive entry transceiver (quantity 2) |
| 7 | Door handle |
