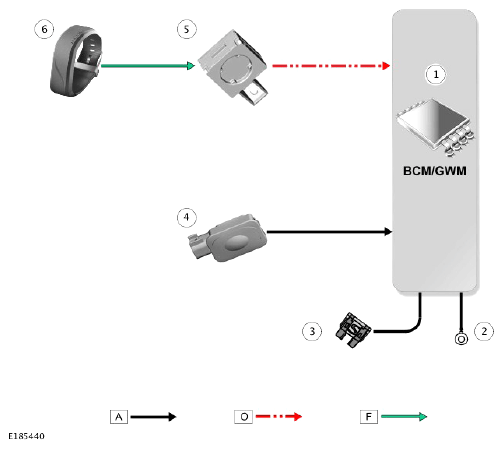

Control Diagram - 3 Of 4 - Activity Key Detection
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED: F = RADIO FREQUENCY (RF) TRANSMISSION: O = LOCAL INTERCONNECT NETWORK (LIN).
| ITEM |
DESCRIPTION |
| 1 |
Body Control Module/Gateway Module (BCM/GWM) |
| 2 |
Ground |
| 3 |
Power supply |
| 4 |
Exterior tailgate release switch |
| 5 |
Activity key transceiver module |
| 6 |
Activity key |
