Home >> Land Rover >> 2022 >> Range Rover Sport HST >> Repair and Diagnosis >> Accessories & Equipment >> Steering Column Switches -- Range Rover Sport/L494 >> Steering Column Control Switch (G1557254) >> Removal And Installation >> Removal

Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.

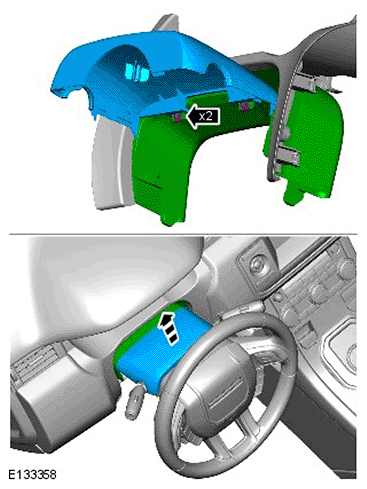

  1. G11694081Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

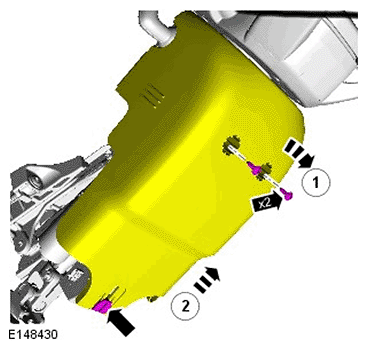

  2. G11694147Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

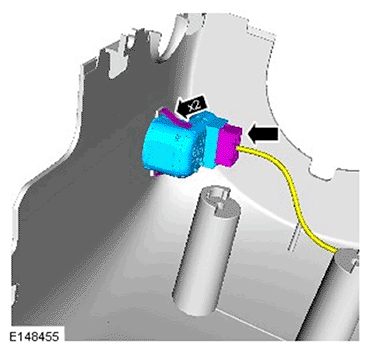

  3. G11694148Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
