Rear View Camera Water Ingress Sealing (G2856800): Repair

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Cut a 30 mm x 20 mm section of suitable 1 mm thick butyl tape from the tape supplied in the sealing kit.
Renew Part: Sealing Kit - Rear View Camera Quantity: 1 . Part Number: LR138086
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

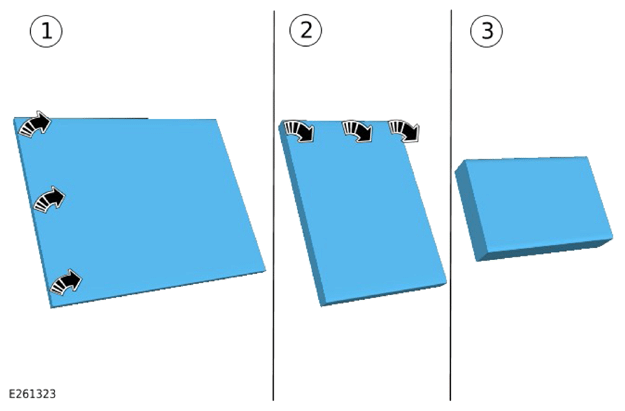

- Fold the butyl tape in half along the length as shown in the illustration (1).
- Fold the butyl tape in half along the width as shown in the illustration (2).
- The butyl tape will now be 15 mm x 10 mm x 4 mm, as shown in the illustration (3).
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

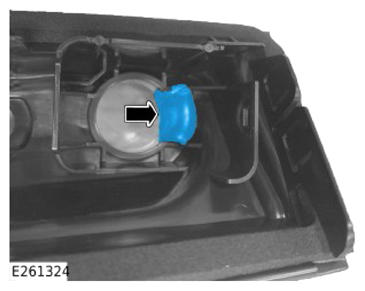

- Install the butyl tape as shown in the illustration.
- Using a suitable trim tool, firmly press down the butyl tape to remove any air pockets.
NOTE: The butyl tape must overlap itself.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

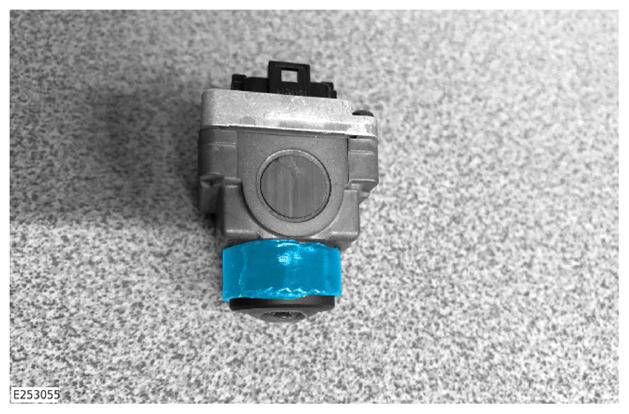

- Cut a strip of butyl tape with the dimensions 70 mm x 8 mm x 1 mm from the tape supplied in the sealing kit
- Install the butyl tape on to the new rear view camera as shown in illustration.
- Install the new rear view camera and a new camera clamp.
- Using a suitable tool make sure all 4 clips on the clamp are engaged.
