Low Frequency Antenna

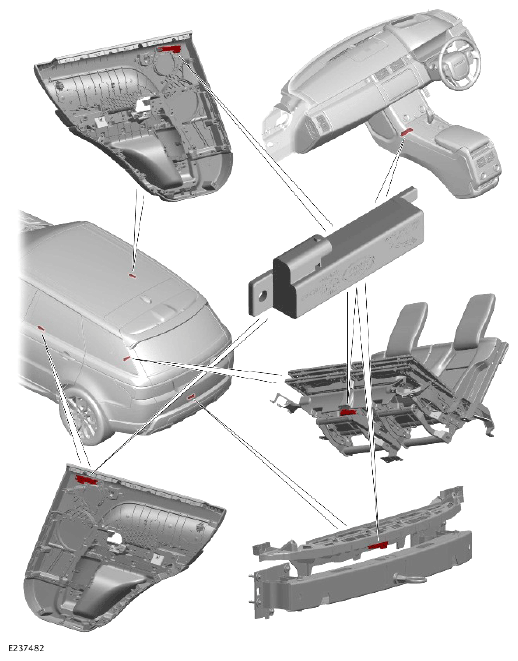

There are 5 Low Frequency (LF) antennas for the passive start system positioned in the following locations:
- There is 1 LF antenna located in the front floor console.
- There is 1 LF antenna located beneath the third row seats.
- There is 1 LF antenna located behind the rear bumper.
The Remote Function Actuator (RFA) transmits a LF signal through the antennas which is received by the smart key. The smart key then responds by transmitting a Radio Frequency (RF) signal which is received by the remote function receiver. The remote function receiver sends the signal to the RFA for authorization.
