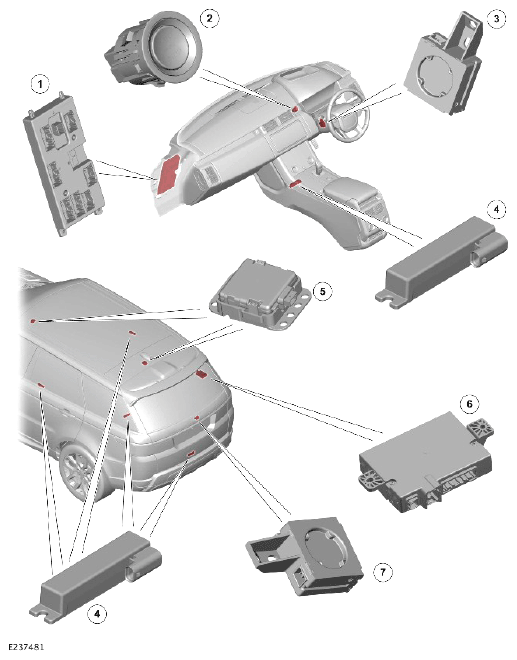

Component Location - 1 Of 1
NOTE:
Right Hand Drive (RHD) vehicle is shown. Left Hand Drive (LHD) vehicle is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) |
| 2 | Ignition switch |
| 3 | Immobilizer Antenna Unit (IAU) |
| 4 | Low Frequency (LF) antenna (quantity 3) |
| 5 | Passive entry transceiver (quantity 2) |
| 6 | Remote Function Actuator (RFA) |
| 7 | Activity key transceiver module |
