Wheel Bearing - Front Wheel Drive (G2296783): Removal
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Before replacing the wheel bearing, make sure to have followed the diagnosis and testing procedure.
Refer to: WHEEL BEARINGS .
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
- Remove the wheel knuckle.
Refer to: WHEEL KNUCKLE .

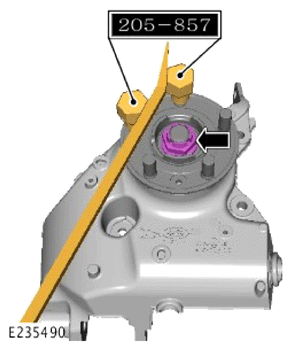

Use 2 of the nuts from special tool 205-857 and a suitable tool. Hold the wheel hub still and remove the hub nut. Keep the hub nut for use during the installation procedure.
Special Tool(s): 205-857
General Equipment: Tire lever

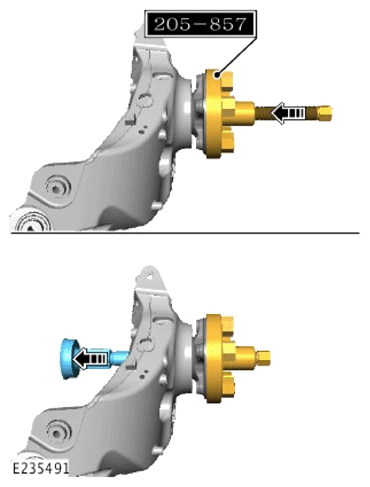

Use the special tool to remove the stub axle.
Special Tool(s): 205-857
Install the special tools to the wheel knuckle.
Special Tool(s): JLR-204-836
Use the special tools to remove the wheel hub.
Special Tool(s): 204-726
General Equipment: Hydraulic press
Use a suitable tool to reposition the inner race of the wheel bearing to allow the special tool to be installed.
General Equipment: Copper Hammer
General Equipment: Punch
Use the special tool to remove the inner race of the wheel bearing.
Special Tool(s): 204-305
General Equipment: Hydraulic press
Clean and inspect the components.
Remove the circlip.
Use the special tool to remove the wheel bearing.
Special Tool(s): 204-726
General Equipment: Hydraulic press
Clean and inspect the components.
