Wheel Bearing - All Wheel Drive (G2296784): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

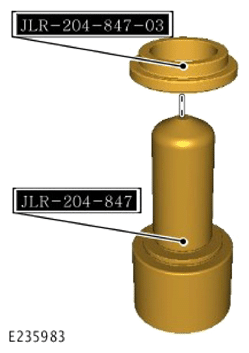

Assemble the special tools as shown.

Special Tool(s): JLR-204-847 , JLR-204-847-03
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tools to the wheel knuckle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure the new wheel bearing is installed with the wheel speed sensor ring facing inward.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

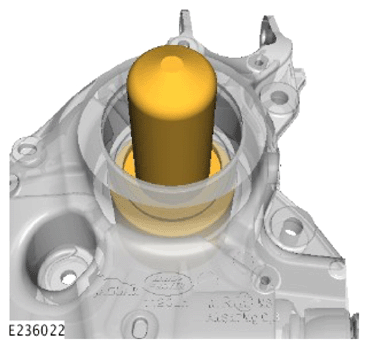

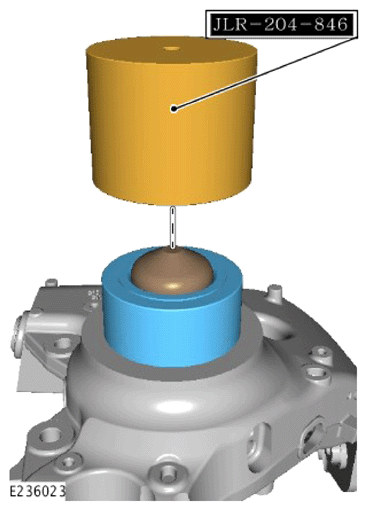

Use the special tools to install the wheel bearing.

Special Tool(s): JLR-204-846

General Equipment: Hydraulic press
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

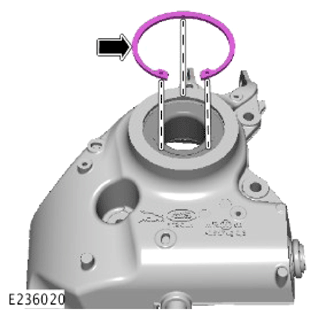

Install the circlip with the gap towards the bottom the wheel knuckle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

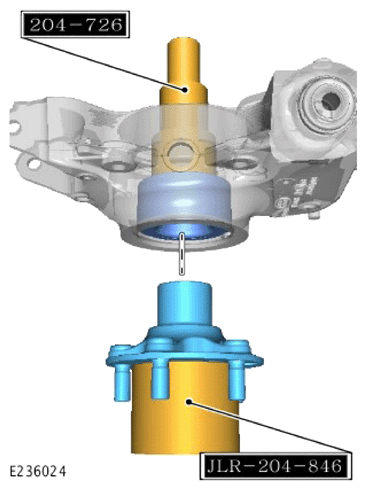

Use the special tools to install the wheel hub.

Special Tool(s): 204-726 , JLR-204-846

General Equipment: Hydraulic press
Install the wheel knuckle.
Refer to: WHEEL KNUCKLE .
