Shock Absorber (G2296778): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the wheel and tire.
Refer to: WHEEL AND TIRE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

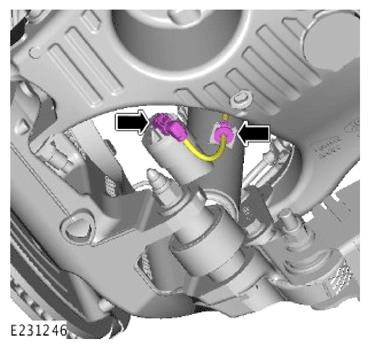

Disconnect and release the shock absorber wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable stand, support the lower control arm.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

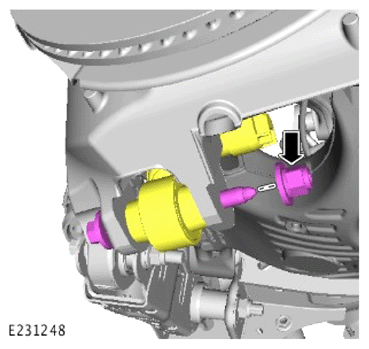

- Remove and discard the shock absorber lower nut and bolt.
- Release the shock absorber from the wheel knuckle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

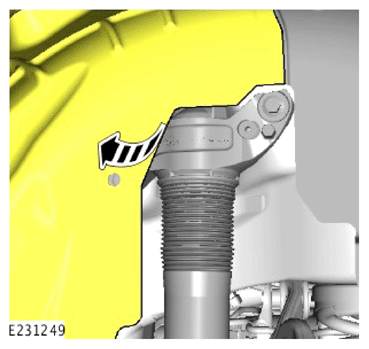

Reposition the front section of the wheel arch liner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

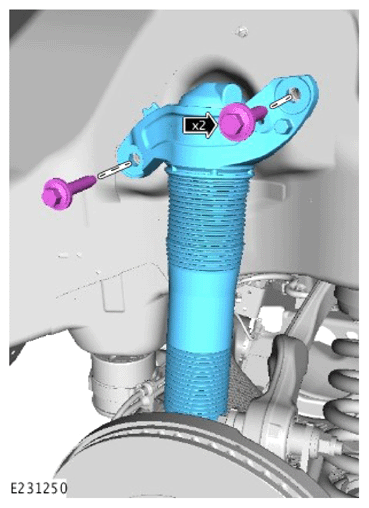

- Remove and discard the 2 upper bolts.
- Remove the shock absorber.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

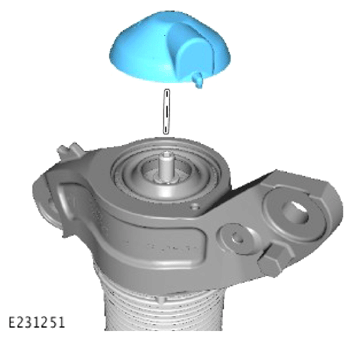

Remove the cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

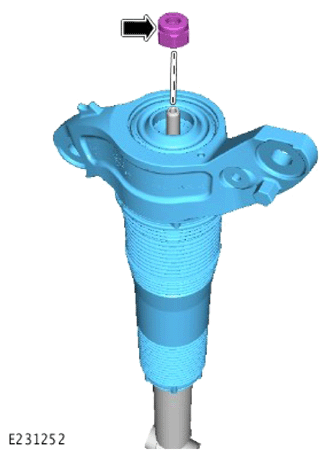

- Remove and discard the nut from the top of the shock absorber.
- Remove the shock absorber top mounting.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

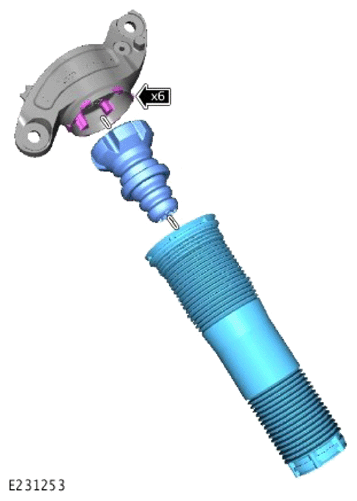

- Remove the shock absorber boot.
- Remove the spring aid.

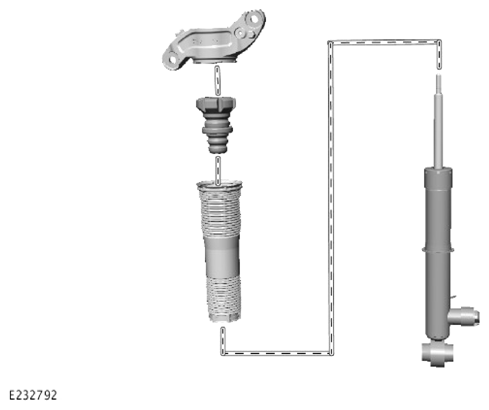

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Inspect the components and replace if damaged or worn.
