Rear SUBFRAME Bush (G2919874): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the rear subframe.
Refer to: REAR SUBFRAME - [+] MHEV/[+] NON-ELECTRIC VEHICLES .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

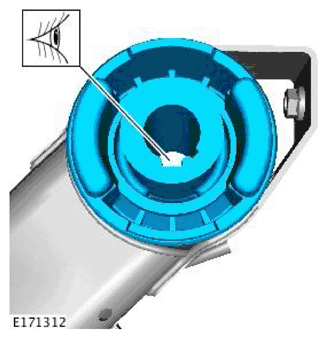

Note the orientation of the bush before removal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

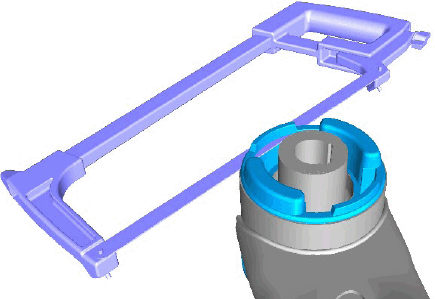

Using a suitable handsaw, carefully remove the lip from the top of the bush.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

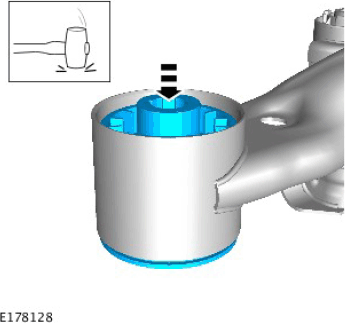

Using a suitable tool, remove the rear subframe bush.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

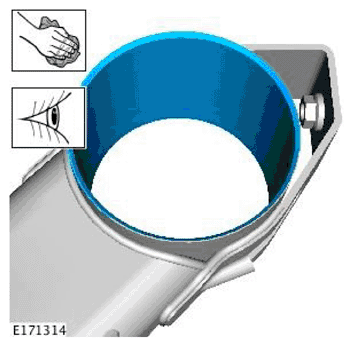

Clean and inspect the component for deterioration.
