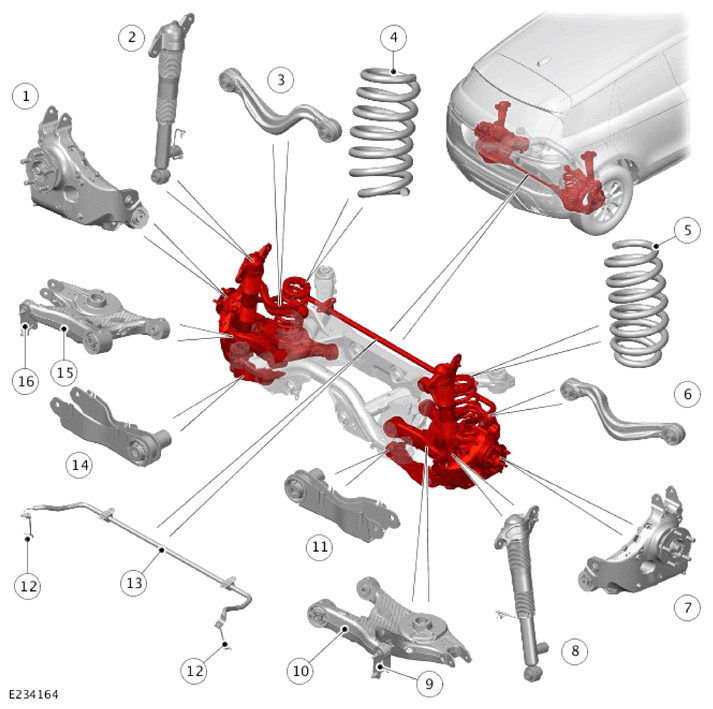

| 1 |
Right wheel knuckle and wheel hub assembly |
| 2 |
Right adaptive shock absorber |
| 3 |
Right upper control arm |
| 4 |
Right coil spring |
| 5 |
Left coil spring |
| 6 |
Left upper control arm |
| 7 |
Left wheel knuckle and wheel hub assembly |
| 8 |
Left adaptive shock absorber |
| 9 |
Integral link - Left lower control arm to left wheel knuckle (quantity 2) |
| 10 |
Left lower control arm |
| 11 |
Left tie-rod |
| 12 |
Stabilizer bar link |
| 13 |
Stabilizer bar |
| 14 |
Right tie-rod |
| 15 |
Right lower control arm |
| 16 |
Integral link - Right lower control arm to right wheel knuckle (quantity 2) |
