Front Suspension (G3260200)

Torque Specification

NOTE: Numbers with a green background are a single use components.

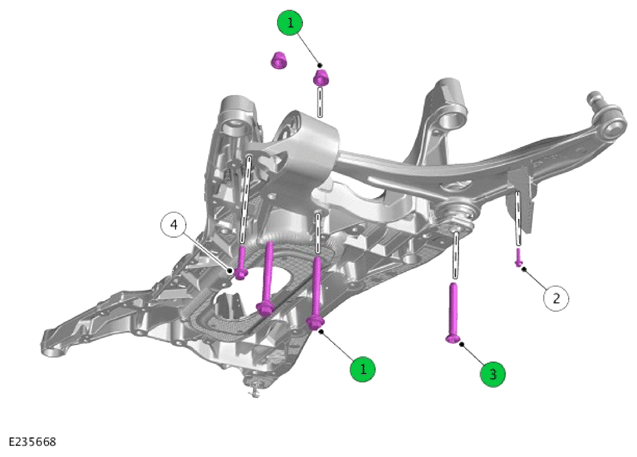

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM		LB-FT		LB-IN
1	Lower control arm rear bush/stabilizer bar nuts and bolts	Stage 1: 140	Stage 2: 120°	Stage 1: 103	Stage 2: 120°	-
2	Lower control arm air deflector bolt	8		-		71
3	Lower control arm front bush bolt to subframe	Stage 1: 110	Stage 2: 180°	Stage 1: 81	Stage 2: 180°	-
4	Lower control arm rear bush to subframe bolt	60		44		-

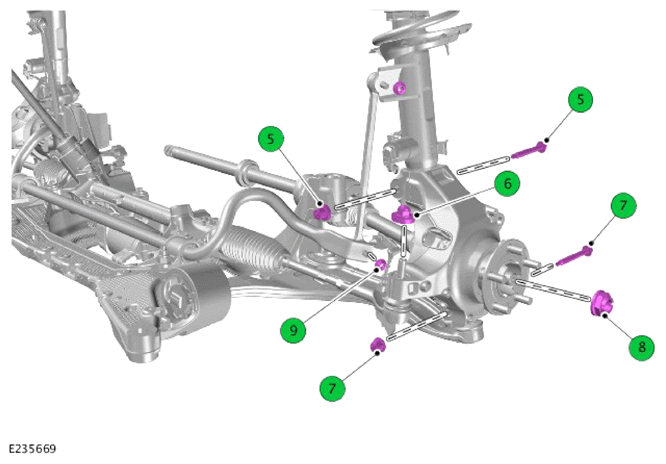

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM		LB-FT		LB-IN
5	Wheel knuckle to shock absorber nut and bolt	Stage 1: 80	Stage 2: 180°	Stage 1: 59	Stage 2: 180°	-
6	Tie rod end nut	133		98		-
7	Lower control arm ball joint nut and bolt	Stage 1: 80	Stage 2: 180°	Stage 1: 59	Stage 2: 180°	-
8	Halfshaft nut	Stage 1: 300	Stage 2: Loosen 90°	Stage 1: 221	Stage 2: Loosen 90°	-
-		Stage 3: 80	Stage 4: 60°	Stage 3: 59	Stage 4: 60°	-
9	Stabilizer bar link nuts	70		52		-

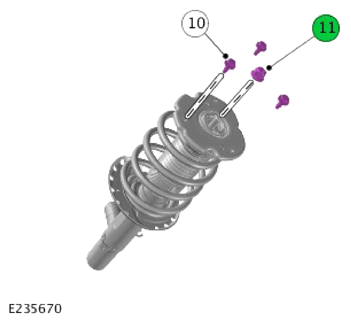

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM		LB-FT		LB-IN
10	Shock absorber upper mounting bolts	32		24		-
11	Shock absorber top nut	67				-

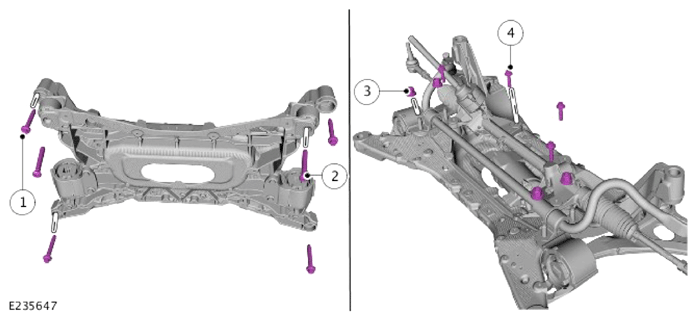

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM		LB-FT		LB-IN
1	Front subframe to body bolts	Stage 1: 110	Stage 2: 180°	Stage 1: 181	Stage 2: 180°	-
2	Front lower control arm bolts	Stage 1: 110	Stage 2: 180°	Stage 1: 81	Stage 2: 180°	-
3	Front stabilizer bar to front subframe nuts	Stage 1: 140	Stage 2: 120°	Stage 1: 103	Stage 2: 120°	-
4	Steering gear bolts	Stage 1: 30	Stage 2: 60°	Stage 1: 22	Stage 2: 60°	-
