Wheel Knuckle (G3260206): Removal

WARNING: Do not use air tools to remove or install the halfshaft nut.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Before replacing the wheel knuckle, make sure to have followed the diagnosis and testing procedure.
Refer to: SUSPENSION ARMS .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the front wheel and tire.
Refer to: WHEEL AND TIRE .
NOTE: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Apply the foot brake and remove the halfshaft nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

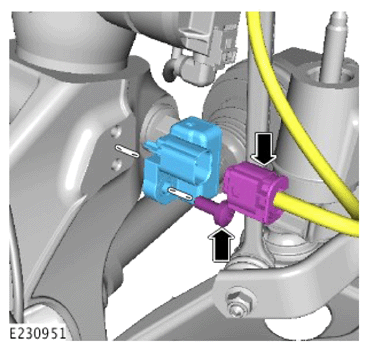

- Disconnect the electrical connector.
- Remove the bolt.
- Remove the accelerometer sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

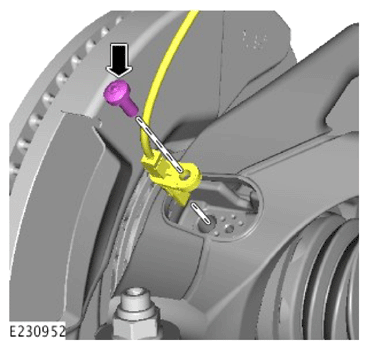

- Remove the bolt.
- Reposition the wheel speed sensor away from the wheel knuckle.
Remove the brake disc.
Refer to: BRAKE DISC .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

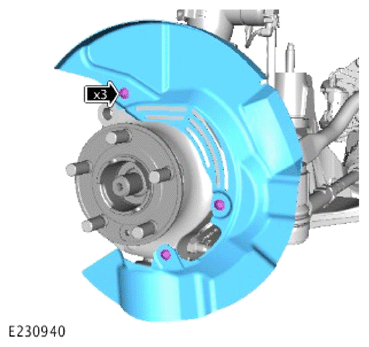

- Remove the 3 bolts.
- Remove the brake disc backplate.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

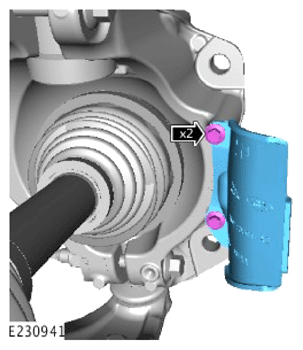

- Remove the 2 bolts.
- Remove the brake cooling air duct.
Remove the front subframe.
Refer to: FRONT SUBFRAME .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

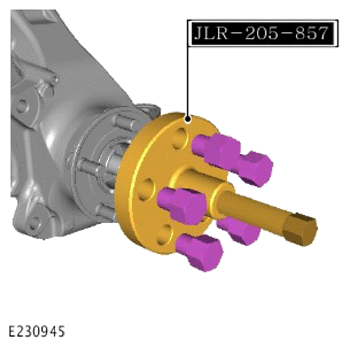

- Install the special tool.
  Special Tool(s): 205-857
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

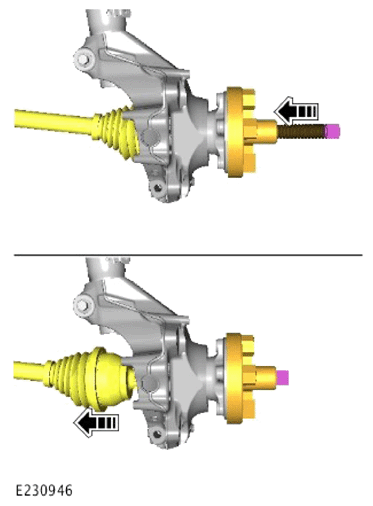

Use the special tool to release the halfshaft.
Remove the special tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

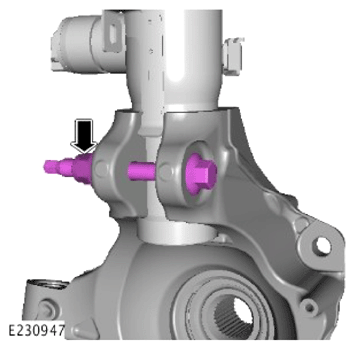

Remove and discard the shock absorber to wheel knuckle mounting nut and bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Note the installed position of the wheel knuckle to shock absorber prior to removal.
- Remove the wheel knuckle.
