Engine Ignition - INGENIUM I4 2.0L Petrol (G2116747)

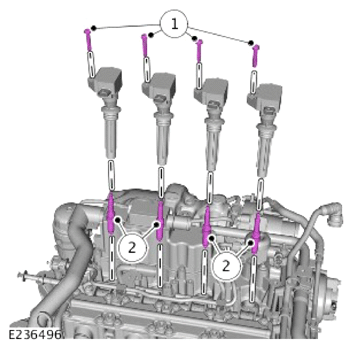

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN
1	Ignition coil on-plug screw	8	-	71
2	Spark plug	23	17	-
