Fuel Tank And Lines - INGENIUM I4 2.0L Petrol (G2320349)
CAPACITY SPECIFICATION
| ITEM | LITERS |
|---|---|
| Fuel tank capacity - Petrol | 70 |
GENERAL SPECIFICATIONS
| ITEM | Specifications |
|---|---|
| Fuel system | Electronic - returnless |
| Fuel tank | Multi layer plastic |
| Fuel pump | Dual stage electric - submersible - located in fuel tank |
| Fuel filter | Located in the fuel tank - if the fuel filter becomes blocked a new fuel pump and sender unit must be installed |
| Fuel tank sender units | Two - active and passive - passive sender unit is attached to the removable retaining bracket and the active sender unit is attached to the fuel pump swirl pot |
| System pressure | 4.5 bar - 65.3 lbf/in2 |
| Starting pressure | 6.3 bar - 91.4 lbf/in2 |
| COMPONENT TORQUE LOCATION |
|---|
TORQUE SPECIFICATION
| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|

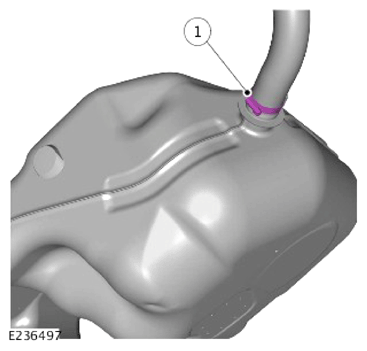

| 1 | Fuel tank filler pipe hose clamp | 3.2 | - | 28 |

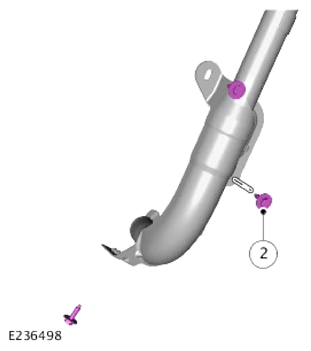

| 2 | Fuel filler shield bolts | 10 | 7 | - |

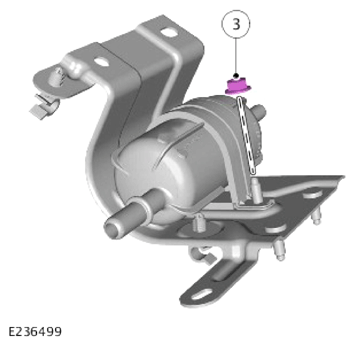

| 3 | Fuel filter hose nut | 9 | - | 79 |

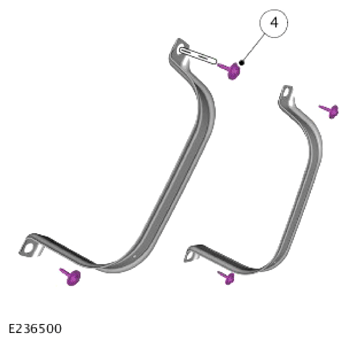

| 4 | Fuel tank strap bolts | 25 | 18 | - |

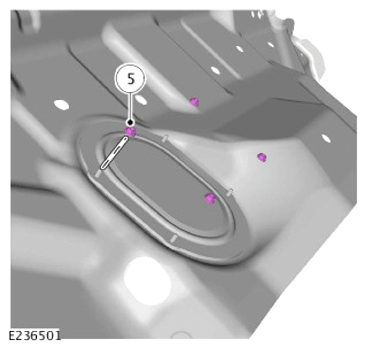

| 5 | Pump access cover nuts | 9 | - | 79 |

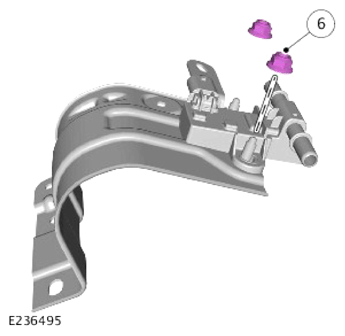

| 6 | Flex fuel sensor nuts | 6 | - | 44 |

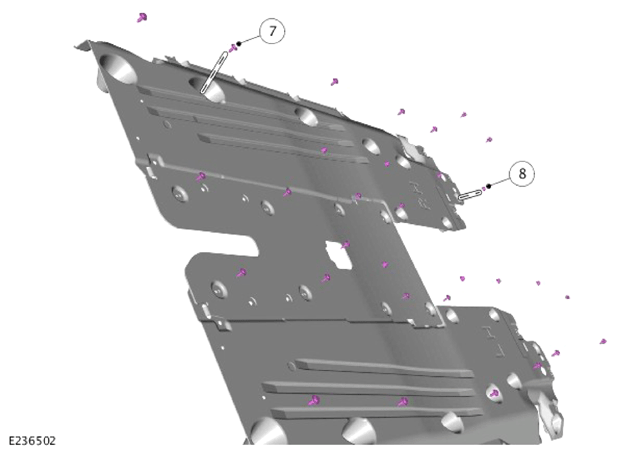

| 7 | Under shield bolts | 9 | - | 79 |
| 8 | Under shield nuts | 9 | - | 79 |
