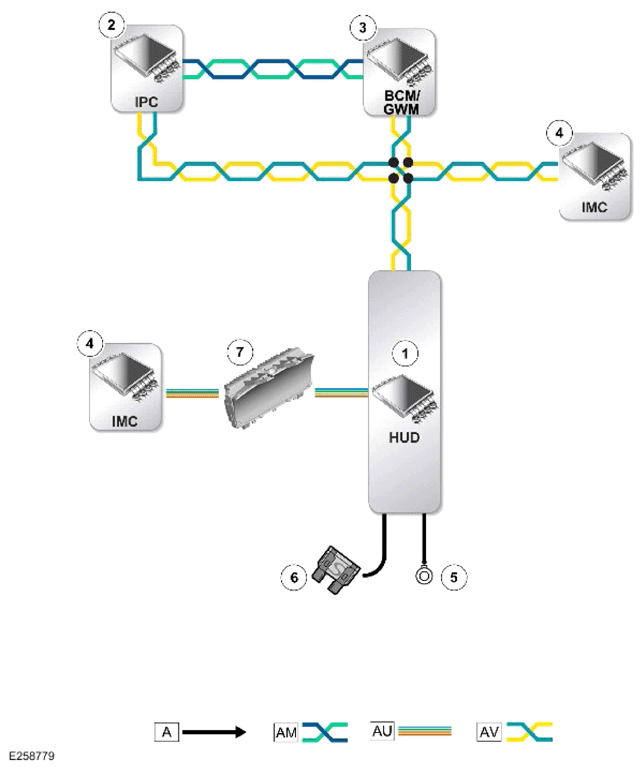

Control Diagram - 4 Of 4 - Head Up Display - Virtual Display
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED: AM = HS CAN CHASSIS SYSTEMS BUS: AU = APIX2: AV = HS CAN COMFORT SYSTEMS BUS.
| ITEM |
DESCRIPTION |
| 1 |
HUD |
| 2 |
IPC |
| 3 |
BCM
/GWM |
| 4 |
IMC |
| 5 |
Ground |
| 6 |
Power supply |
| 7 |
IPC |
