Battery, Mounting And Cables - Vehicles With: Non-Electric Vehicles (G2320137)

GENERAL SPECIFICATION - STOP-START AND TIMED CLIMATE MODELS

ITEM	SPECIFICATION
Startup Battery:
Type	H7 AGM (VRLA)
Capacity	80Ah/800CCA

GENERAL SPECIFICATION - ALL EXCEPT STOP-START AND TIMED CLIMATE MODELS

ITEM	SPECIFICATION
Battery:
Type	H7 Flooded
Capacity	80Ah/700CCA

Startup Battery Terminal Installation

CAUTION: Ensure the clamping lug on the BMS is below the top of the negative terminal post as shown.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

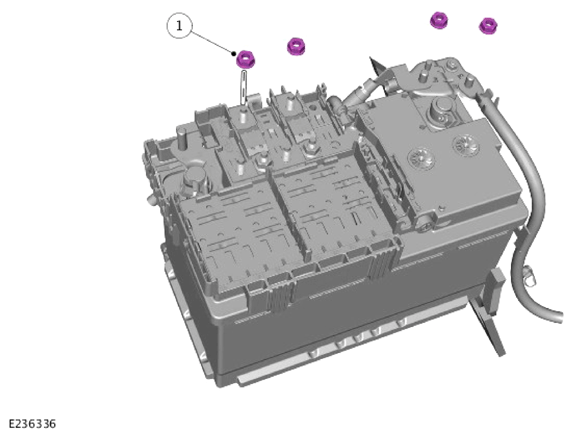

1	Startup battery cable nuts	18	13	-

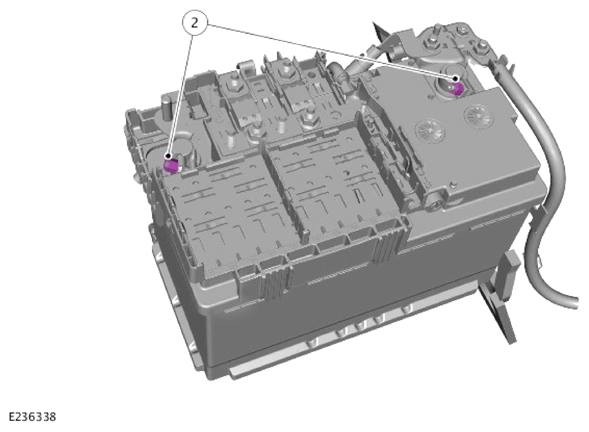

2	Startup battery terminal nuts	6	-	53

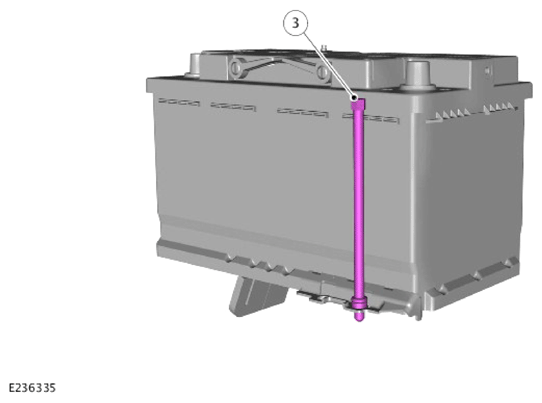

3	Startup battery retainer	24	17	-

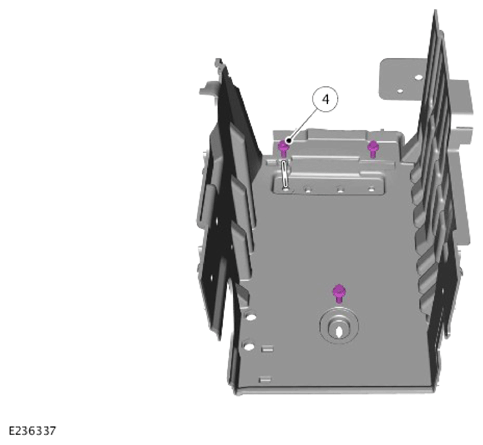

4	Startup battery tray bolts	10	7	-

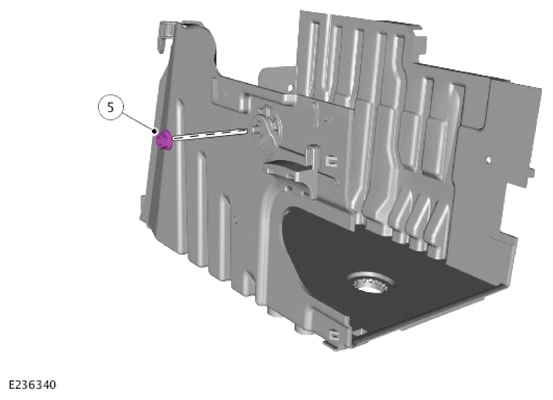

5	Wiring harness nut	10	7	-

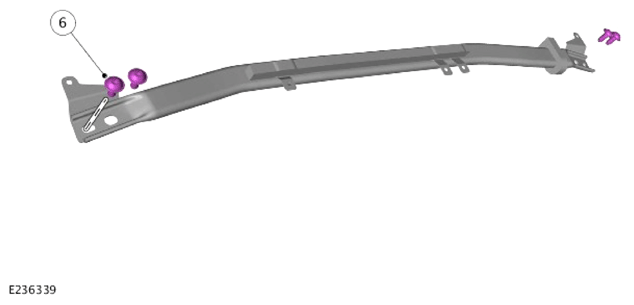

6	Cross brace bolts	25	18	-
