Driveshaft (G2308024): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

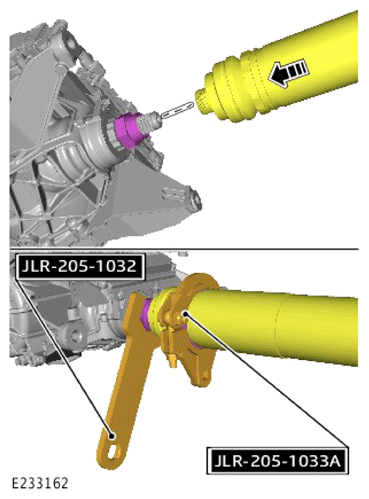

Use the special tools to install the rear driveshaft.

Special Tool(s): JLR-205-1032 , JLR-205-1033A
NOTE: This procedure requires the aid of another technician.
- With assistance, install the rear driveshaft.
- Reposition the center bearing into the correct location.
- Install the heatshield.
- Install and tighten the 2 new driveshaft center bearing mount bolts.
  Renew Part: Driveshaft center bearing mount bolt(s) Quantity: 2 .

  Torque : 24 Nm
- Install the driveshaft.
- Align the marks made during the removal procedure.
- Install the 3 washers.
- Install and tighten the 6 new bolts in a diagonal sequence.
  Renew Part: Driveshaft to front output flange bolts Quantity: 6 .

  Torque : 40 Nm
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

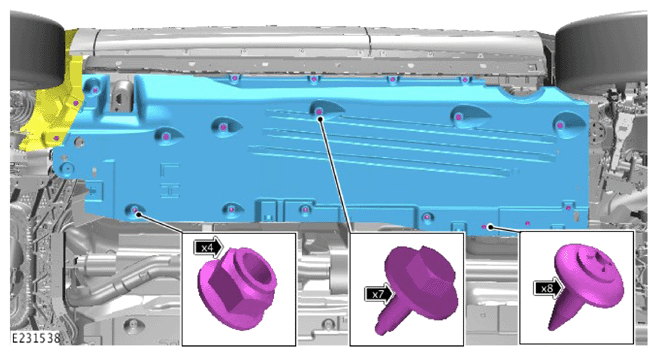

- Install the left side undershield.
- Install and tighten the 4 nuts.
  Torque : 7 Nm
- Install and tighten the 7 bolts.
  Torque : 7 Nm
- Install the 8 fasteners.
CAUTION: Use the same unit of length for the calculation.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Use the special tool and torque wrench to fully tighten the driveshaft.
  Special Tool(s): JLR-205-1032

  Torque : 150 Nm

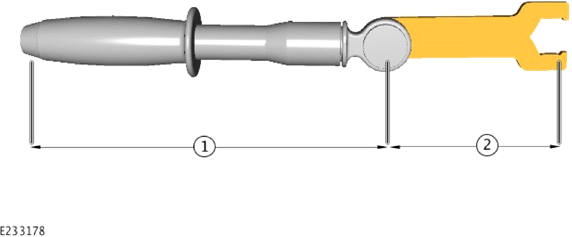

- Step 1. Multiply the required torque by the effective length of the torque wrench (1).
- Step 2. Add the effective length of the special tool (2) to the effective length of the torque wrench (1).
- Step 3. Divide the total of step 1 by the total of step 2.
- Step 4. Set the torque wrench to the figure arrived at in step 3.
- Tighten the rear driveshaft to the torque given by the calculation.
Install the exhaust system.
Refer to: EXHAUST SYSTEM .
