Rear Differential Pinion Seal (G2354783): Removal

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: JACKING AND LIFTING .

  2. Remove the rear driveshaft.

    Refer to: DRIVESHAFT .

  3. G14422745Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Use a suitable tool to remove the circlip.
    • Discard the circlip.
    • Remove the rear driveshaft nut.
    • Remove and discard the O-ring seal.

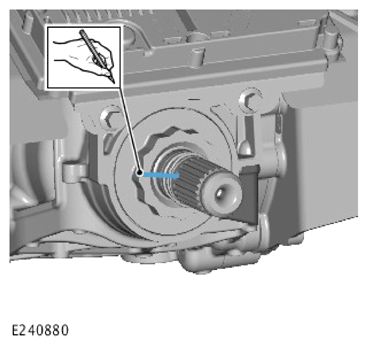

  4. G14422766Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Mark the position of the pinion nut in relation to the rear differential pinion as illustrated.

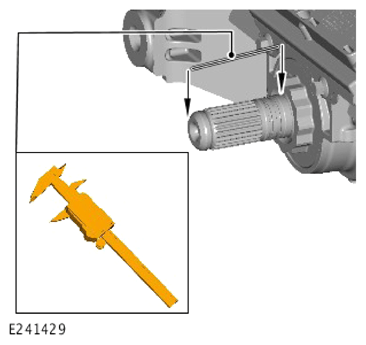

  5. G14422767Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use a suitable vernier to measure the distance between the top of pinion nut to the tip of the pinion to aid installation.

    General Equipment: Vernier gauge

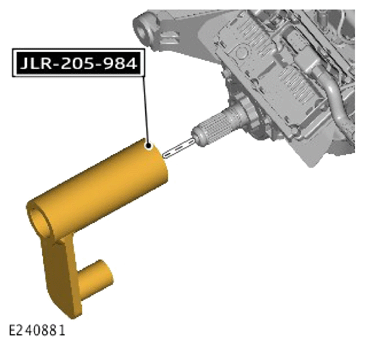

  6. G14422768Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s): JLR-205-984

  7. NOTE: Make sure that the special tool is correctly installed on the rear differential splines.

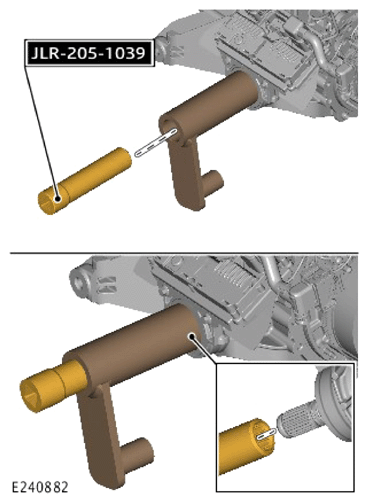

    G14422769Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s): JLR-205-1039

  8. CAUTION:
    • Make sure the special tool is correctly supported.
    • Make sure the special tool is correctly located in the axle stand.

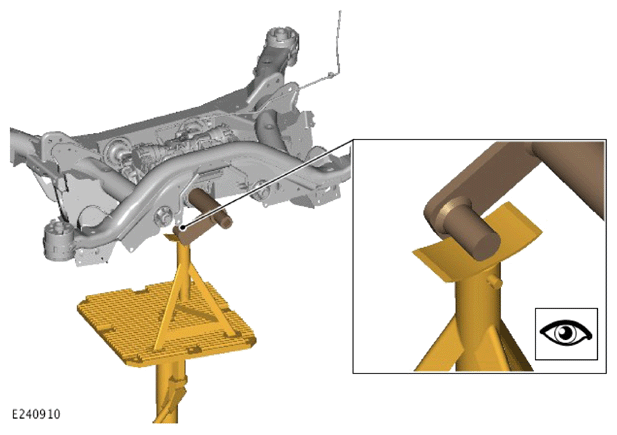

    G14422770Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use a suitable hydraulic jack and axle stand to support the special tool as illustrated.

    General Equipment: Axle stands

    General Equipment: Transmission jack

  9. CAUTION: The rear differential pinion nut has a left hand thread.
    NOTE: Count the number of rotations taken to remove the nut.

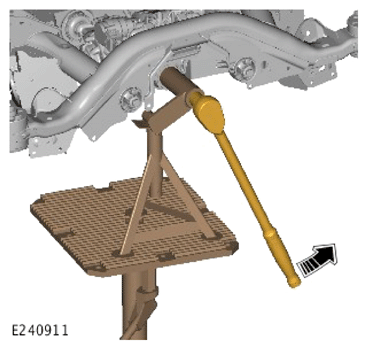

    G14422771Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Loosen the pinion nut.

  10. CAUTION: The rear differential pinion nut has a left hand thread.
    NOTE: Count the number of rotations taken to remove the nut.

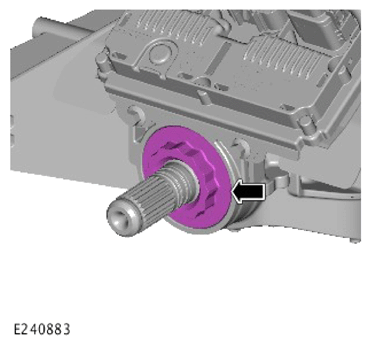

    G14422772Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the rear differential pinion nut.

  11. CAUTION: Be prepared to collect escaping fluids.

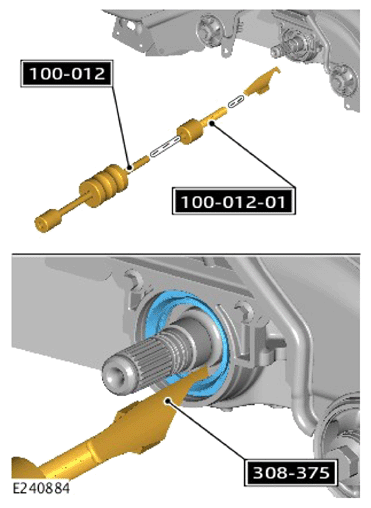

    G14422773Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Use the special tools to remove the rear differential pinion seal.

      Special Tool(s): 100-012-01  , 100-012  , 308-375

    • Discard the seal.
