Rear Differential Control Module (G2309516): Removal

NOTE:
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: JACKING AND LIFTING .

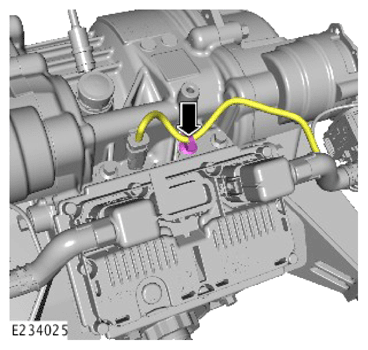

  2. G14422742Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the wiring harness clip.

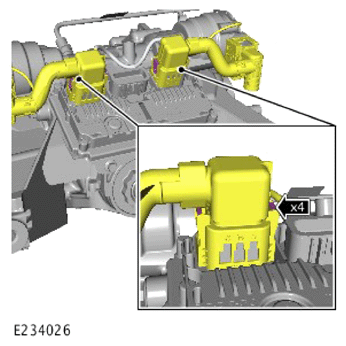

  3. G14422743Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the 2 RDU control module electrical connectors.

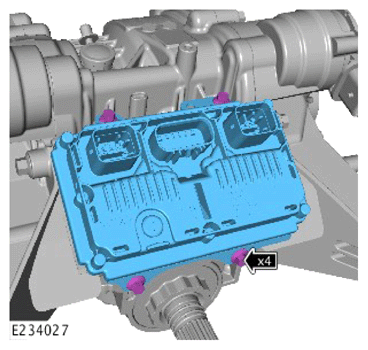

  4. G14422744Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Remove the RDU control module.
