Differential Rear Bush (G1775378): Installation

  1. CAUTION: Only use the specified special tool.

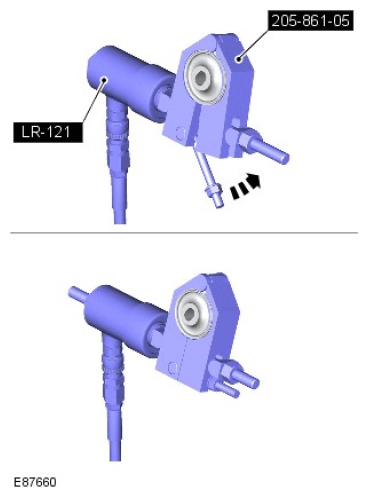

    G11675228Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using the special tool, compress the bushing.

    Special Tool(s): 205-860-09  , 205-861-05  , LR-121

  2. CAUTION: Make sure the correct special tool is used to install the bushings to the correct depth.
    NOTE: Make sure that these components are installed to the noted removal position.

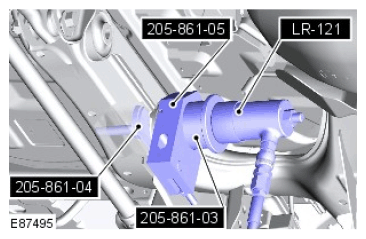

    G11675229Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using the special tool, install the bushing, making sure the slot on the RH bushing is positioned vertically and the slot on the LH bushing is positioned horizontally.

    Special Tool(s): LR-121  , 205-861-04  , 205-861-03  , 205-861-05

  3. Install the rear differential.

    Refer to: REAR DRIVE UNIT .
