Rear Drive Unit Draining And Filling (G2308706): Draining

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Position a suitable container under the Rear Drive Unit (RDU).
CAUTION: Do not discard the filler plug.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

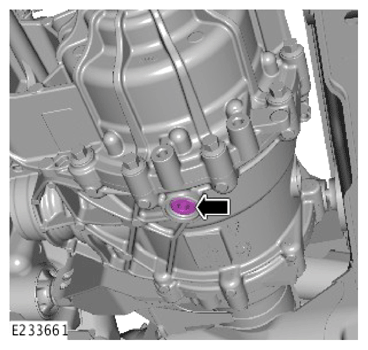

Remove the RDU filler plug.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the RDU drain plug.
Allow the fluid to drain for 20 minutes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the new RDU drain plug.

Renew Part: Rear differential drain plug Quantity: 1 .

Torque : 35 Nm
