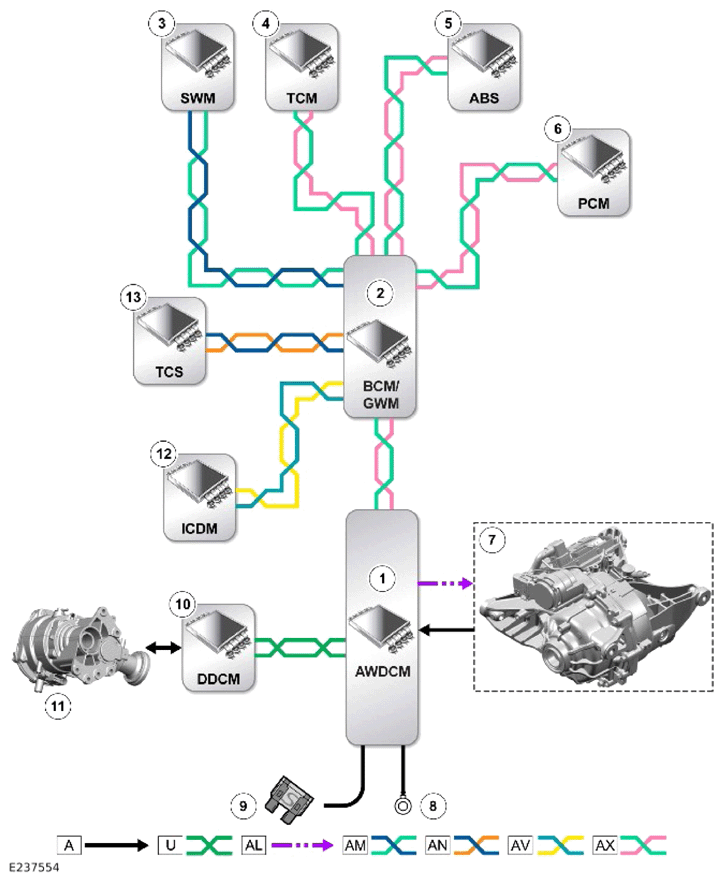

Control Diagram- 2 Of 2 - Vehicles With INCONTROL Touch Pro Duo
A = HARDWIRED: U = PRIVATE CONTROLLER AREA NETWORK (CAN) BUS: AL = PULSE WIDTH MODULATION (PWM): AM = HIGH SPEED (HS) CAN CHASSIS SYSTEMS BUS: AN = HS CAN POWERTRAIN SYSTEMS BUS: AV = HS CAN COMFORT SYSTEMS BUS: AX = FLEXRAY.
| ITEM | DESCRIPTION |
|---|---|
| 1 | All Wheel Drive Control Module (AWDCM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Steering Wheel Module (SWM) |
| 4 | Transmission Control Module (TCM) |
| 5 | Anti-lock Brake System (ABS) control module |
| 6 | Powertrain Control Module (PCM) |
| 7 | Rear Drive Unit (RDU) clutch drive motor |
| 8 | Ground |
| 9 | Power supply |
| 10 | Driveline Disconnect Control Module (DDCM) |
| 11 | Power Transfer Unit (PTU) |
| 12 | Interactive Control Display Module (ICDM) |
| 13 | Transmission Control Switch (TCS) |
