Driver Information

Information is available to driver for system status. The information is output from the All Wheel Drive Control Module (AWDCM) on the High Speed (HS) Controller Area Network (CAN) chassis systems bus. The information is received by the Touchscreen (TS) and the Instrument Cluster (IC).

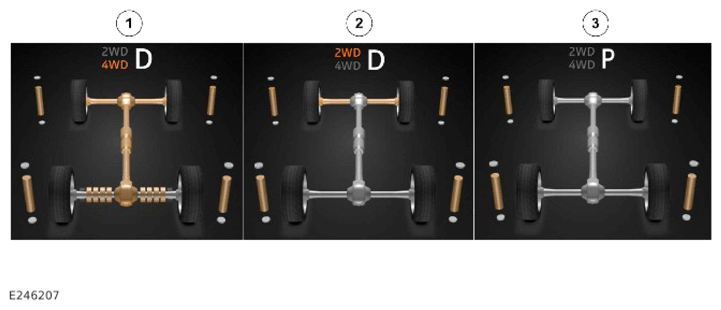

Operational information is available in the TS '4x4i' display, and shows the current operating condition of the driveline.

G14422687Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Displayed when the driveline is in All Wheel Drive (AWD) status for optimum traction and dynamic performance.
2 Displayed when the driveline is in Front Wheel Drive (FWD) status for optimum fuel economy.
3 Displayed when the engine is off, or when a fault condition prevents the driveline status from being displayed

Warning information is displayed in the Instrument Cluster (IC). Warning message '2 wheel drive only - traction reduced' is displayed for overheat in the message center accompanied by a warning chime.
