Brake Pedal

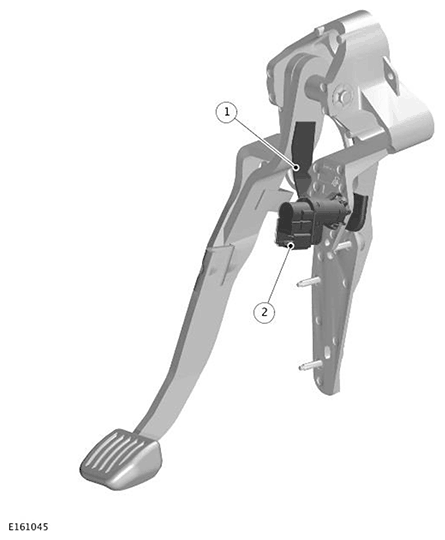

| ITEM | DESCRIPTION |
|---|---|
| 1 | Brake pedal switch operating plate |
| 2 | Brake pedal switch |
The brake pedal is mounted in a bracket attached to the rear side of the engine bulkhead. The brake pedal is connected to the brake booster actuator rod with a clevis pin.
The brake pedal switch is mounted on the brake pedal bracket and operated by a plate attached to the brake pedal. The brake pedal switch is a combined switch, contains a stop lamp switch and a brake test switch in 1 housing. Both switches are connected hardwired to the Body Control Module/Gateway Module (BCM/GWM), to give independent signals of brake pedal operation.
