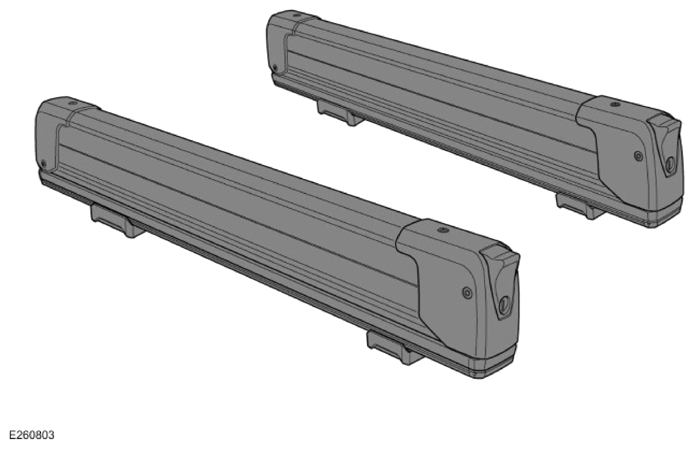

Ski And Snowboard Carrier (G2474306): Notes
VPLZR0187/T2H45726
WARNING:
- Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.
- Do not exceed 130 km/h (80 mph).
- Always secure long loads, those significantly exceeding the length of the roof, at the ends of the vehicle.
- Mount the skis pointing backward in the carriers.
- Make sure the tailgate does not clash with the load.
- Mount the skis with the bindings against the ski and snowboard carrier.
- Be aware of the ski bindings damaging the roof of the vehicle.
- Make sure the load is level.
- Be aware of the increased height of the vehicle.
- The ski and snowboard carrier can carry a maximum of 5 pairs of skis or 2 snowboards.
- Make sure the load is secure before starting a journey.
- Remove the roof cross bars, ski/snowboard carrier and any gear before using an automatic car wash.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- The ski and snowboard carrier is to be used with the roof cross bars.
- The locking system used on this accessory is compatible with the Thule key system. To order replacement keys, refer to your local Thule dealer/website and quote the number stamped into the face of the lock cylinder, e.g - N123. For this accessory, the key model number begins with 1500000, so for example, the model number for key number N123 would be 1500000123.

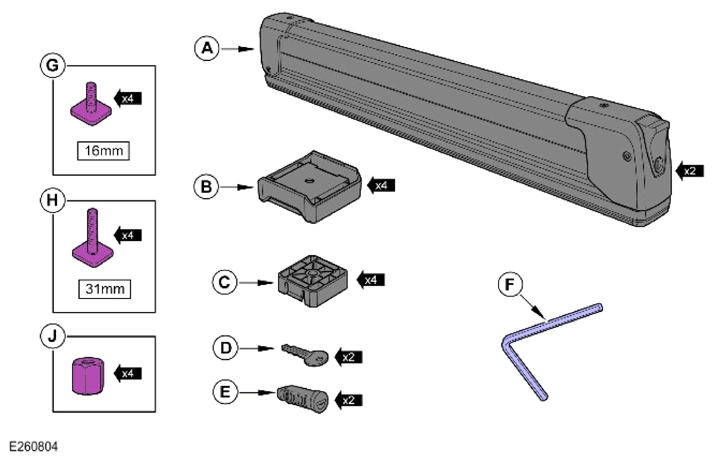

Ski and Snowboard Carrier - (Bill Of Materials).
NOTE:
Part (G) is not required in these instructions and can be discarded.
| DESCRIPTION | PART NUMBER |
|---|---|
| Land Rover Ski and Snowboard Carrier | VPLZR0187 |
| Jaguar Ski and Snowboard Carrier | T2H45726 |

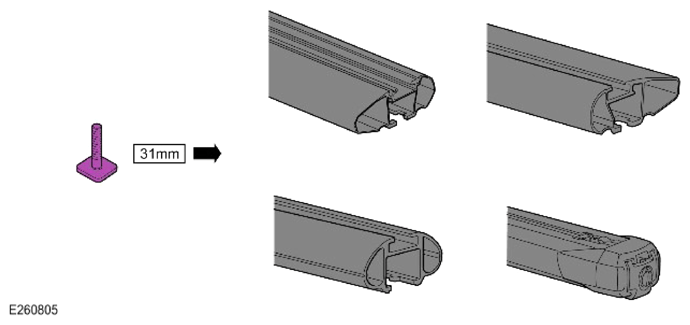

Types of roof cross bar used on your vehicle.

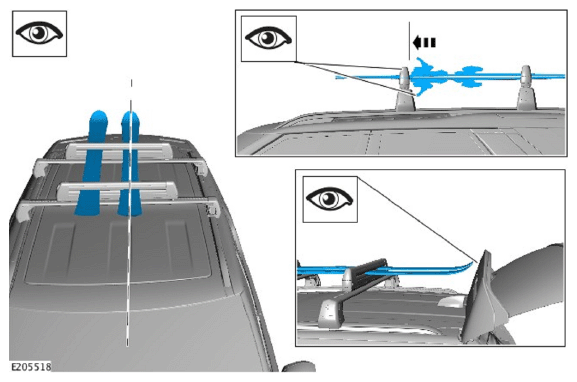

Visual aid of how the ski's should be fitted.
