Ski And Snowboard Carrier (G2474306): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

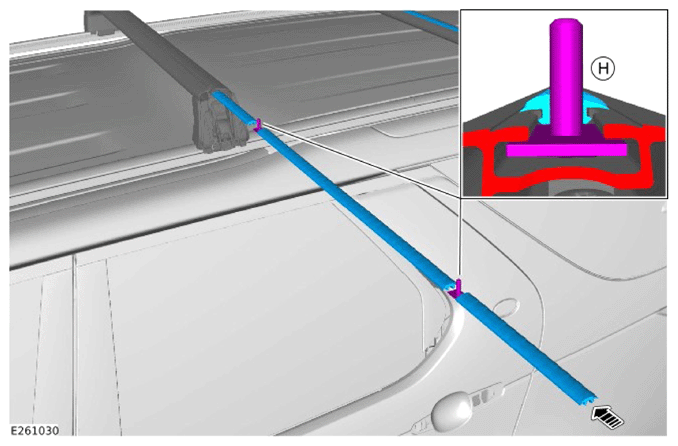

1. Insert the roof cross bar trim and the fixing (H) into the roof cross bar as illustrated.
2. Install and lock the roof cross bar end caps.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

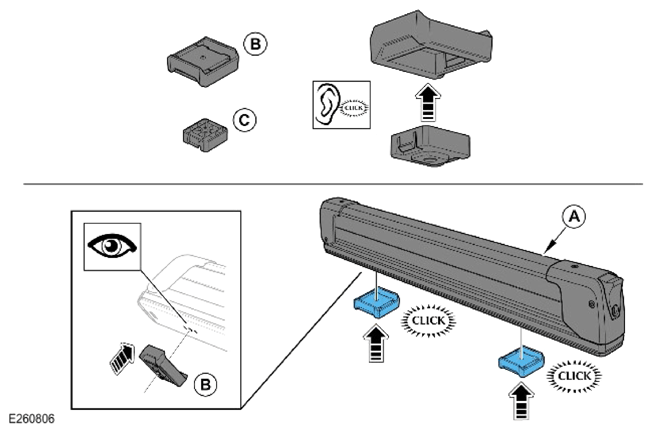

Install the ski and snowboard carrier feet using the location holes.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

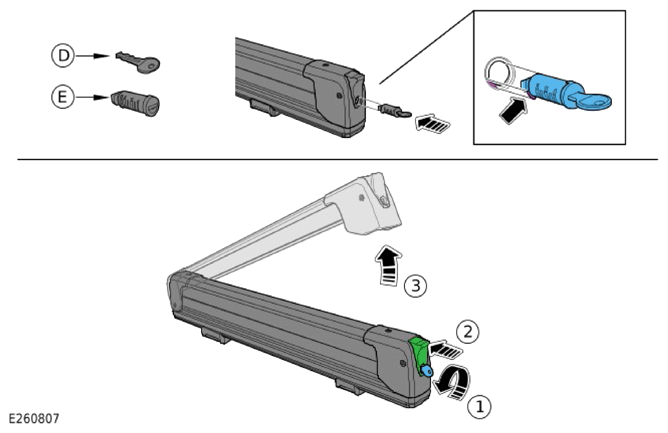

Install the key barrel in the ski and snowboard carrier (A).

1. Unlock the carrier.
2. Push in the release button.
3. Raise the ski and snowboard carrier top section.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

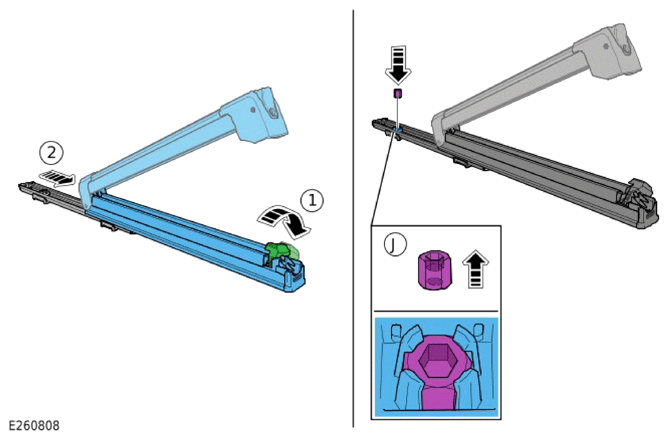

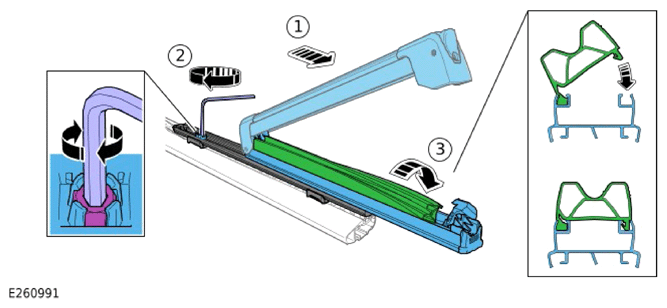

Install the nut (J) into the base of the ski and snowboard carrier.

1. Unlock the carrier base.
2. Slide the carrier in the direction as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

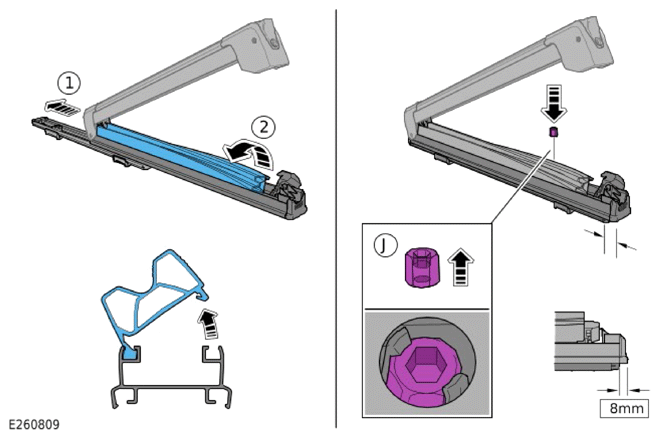

Install the second nut in the ski and snowboard carrier.

1. Slide the carrier in the direction as illustrated.
2. Partially remove the rubber holder to gain access.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

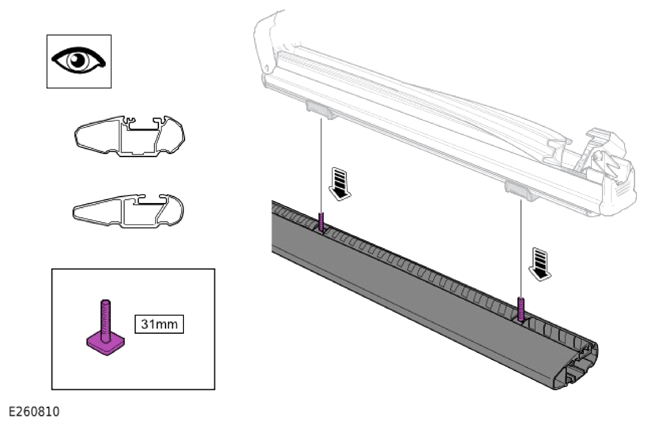

Place the ski and snowboard carrier on the roof cross bar.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

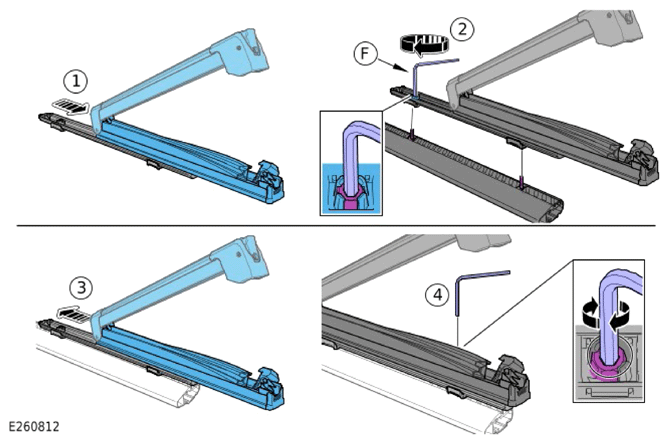

Secure the ski and snowboard carrier to the roof cross bar.

1. Slide the carrier in the direction as illustrated.
2. Thread the nut (J) onto the fixing. 2-3 turns.
3. Slide the carrier in the direction as illustrated.
4. Thread the nut (J) onto the fixing. Torque this nut only: 6 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

1. Slide the carrier in the direction as illustrated.
2. Torque: 6 Nm
3. Install the rubber holder.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

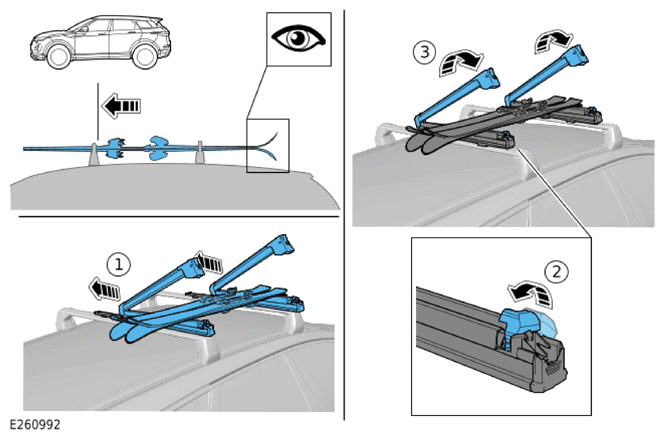

Place skis/snowboards in the carriers.

1. Slide the carriers in the direction illustrated fully over their bases.
2. Lock the carriers in position.
3. Close the carriers.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

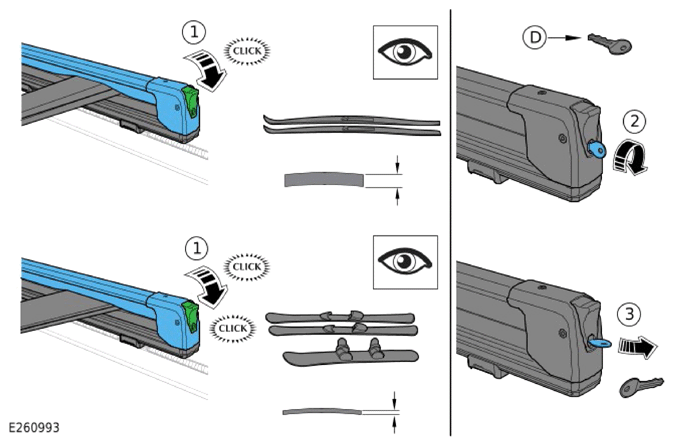

Close and lock the ski and snowboard carriers.

1. Close with 1 or 2 clicks depending on ski thickness.
2. Lock by turning the key (D) clockwise.
3. Remove the key and store in a safe place.
