Roof Cross Bars (G2271669): Notes
VPLZR0171
WARNING:
- Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.
- Comply with all weight limits as illustrated.
NOTE:

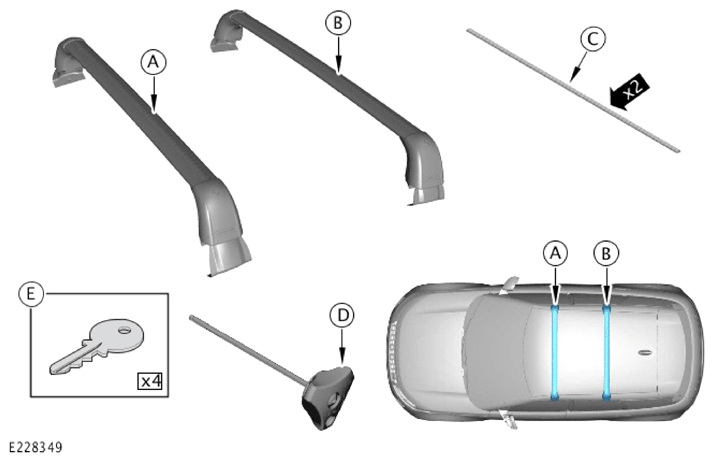

- Make sure the keys (E) and the tool (D) are kept in a safe place after use. They are required for future removal and installation.
- This procedure contains illustrations for left side components, right side components are similar.

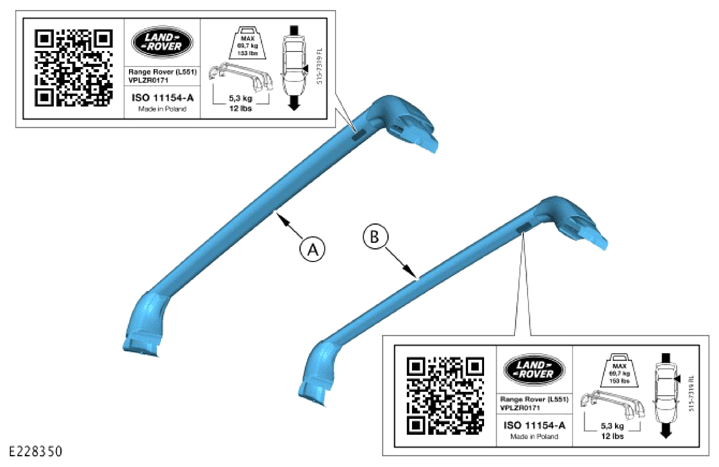

- Use the labels to identify the correct roof cross bar for the front and rear of the vehicle. When installing roof cross bars onto the vehicle, use the labels to identify the right and left side of the roof cross bars to make sure they are installed in the correct orientation.
- Labels are on the left side of the rails.
WARNING:
- Do not exceed 130 km/h or 80 mph when the roof cross bars are installed.
- Do not overload the roof cross bars. Maximum load that can be placed on the roof cross bars is 69.4 kg or 153 lbs.
- Do not load cargo, or accessories, outside of the width of the roof cross bars.
- Always secure long loads, those significantly exceeding the length of the roof, at the ends of the vehicle.
- Always spread the load as evenly as possible, on the roof cross bars, with the lowest possible center of gravity.
- Do not use elastic straps (bungees) to secure loads onto the roof cross bars.
- Make sure that all cargo and accessories are installed securely to the roof cross bars.
- Always check the security of cargo and accessories after travelling a short distance and thereafter at the indicated intervals.
- Adapt your driving technique to suit changes in vehicle handling.
- Be aware of the extra vehicle height.
- Negotiate sharp bends with caution and moderate cornering speeds.
- Avoid harsh acceleration and braking.
- Be aware of the increased effect of wind on the vehicle when carrying items on the roof to minimize the effect of generated lifting and side forces. When carrying multiple surf boards, they should be mounted flat and stacked on top of each other.
- After covering the indicated distances, check the torque of all the roof cross bar fixings. 60 km or 40 miles. 250 km or 150 miles. Then every 1000 km or 600 miles thereafter.
CAUTION:
Do not use automated car washes with the roof cross bars installed.
NOTE:
- The weight of the 2 roof cross bars is 5.6 kg or 12 lbs.
- Removing the roof cross bars, when not in use, will improve fuel economy.
- Obey local regulations regarding carrying items on the roof of a vehicle.
- Seek the assistance of another person when installing the roof cross bars.
- Seek the assistance of another person when loading and unloading, heavy, or awkward, items to and from the roof cross bars.
