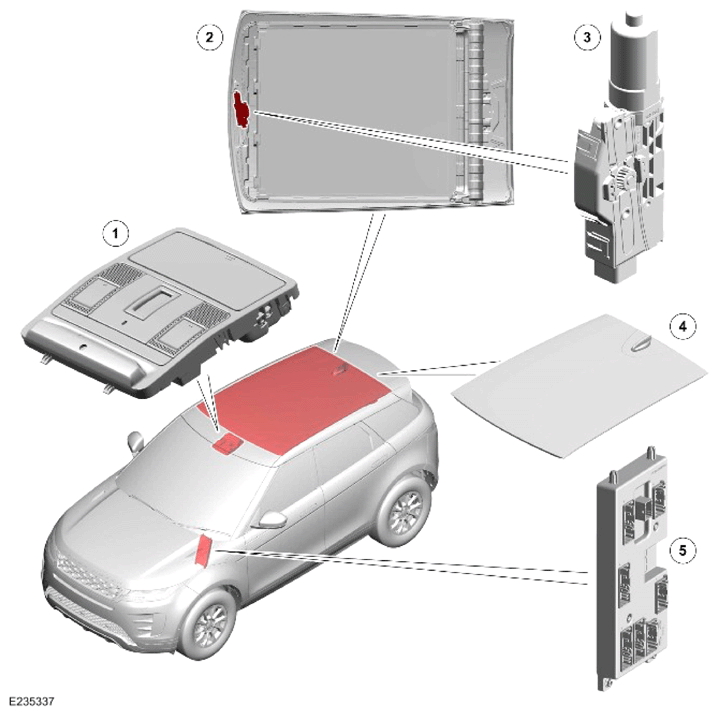

Component Location - 1 Of 1 - Vehicles With Glass Fixed Roof

G14458993Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Roof blind switch - Front overhead console
2 Roof blind assembly
3 Roof blind motor
4 Fixed roof panel
5 Body Control Module/Gateway Module (BCM/GWM)
