Rattle From Left Side A-Pillar And Instrument Panel

Customer may complain of a rattle or squeaking noise from the left side A-pillar and instrument panel while driving on rough roads.

The noise is caused by the A-pillar lower clip rattling within the clip bracket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

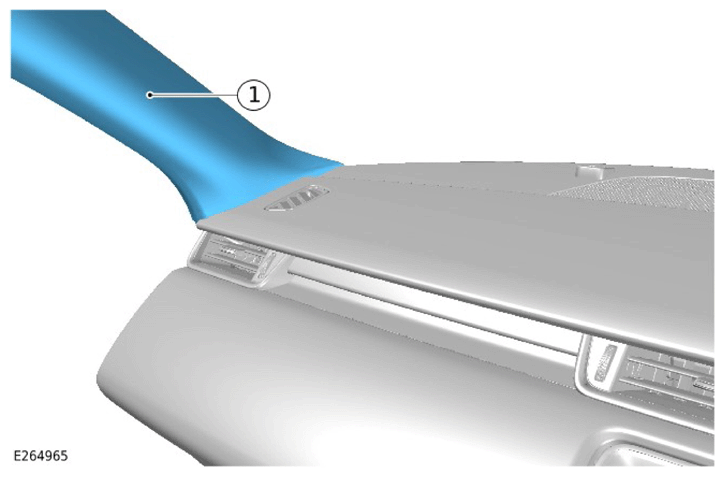

1. Remove the A-pillar trim panel. Refer to: A-PILLAR TRIM PANEL .

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

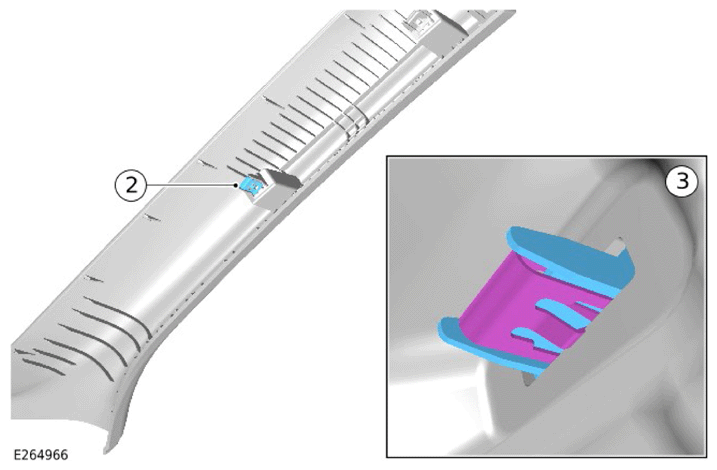

2. Install LR038293/W707487S307 to the A-pillar lower clip bracket.
3. Take extra care when installing the A-pillar trim panel, extra pressure maybe required to install the lower clip to the bracket.
4. Install the A-pillar trim panel. Refer to: A-PILLAR TRIM PANEL .
