Side Parking Aid Camera (G1780357): Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  • The ignition must be switched off.
  • Right illustration shown, Left is similar
  1. Refer to: DOOR MIRROR MOTOR ASSEMBLY .

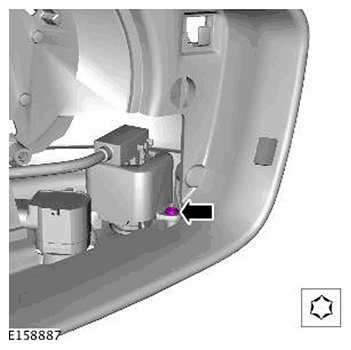

  2. G11720452Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 0.5 Nm

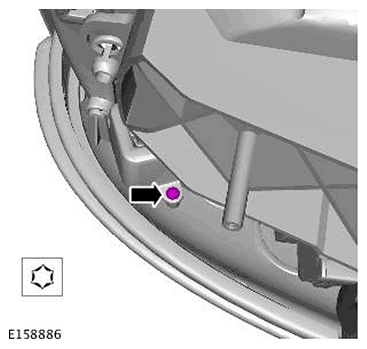

  3. G11720453Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 0.5 Nm

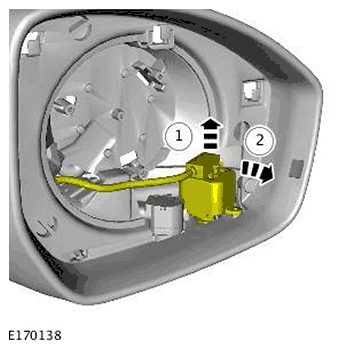

  4. CAUTION: Take extra care not to damage the wiring harness clips.
    G11720454Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

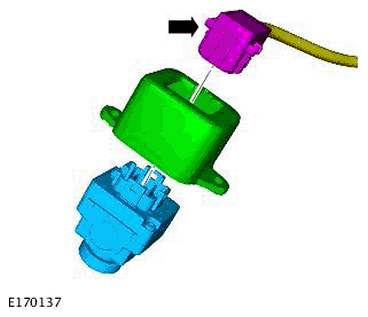

  5. CAUTION: Take extra care not to damage the wiring harness clips.
    G11720455Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
