Parking Aid Camera Module (G2309681): Removal

CAUTION: Make sure that excessive force is not used. Failure to follow this instruction may result in damage to the vehicle.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the front row seat.
Refer to: FRONT ROW SEAT .
Remove the front left treadplate.
Refer to: FRONT LEFT TREADPLATE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

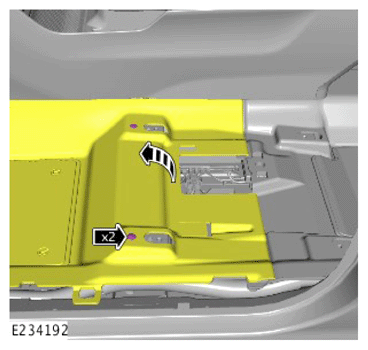

- Remove the 2 clips.
- Release the front floor carpet.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

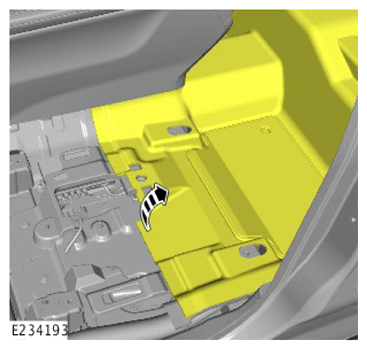

Release the rear floor carpet.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

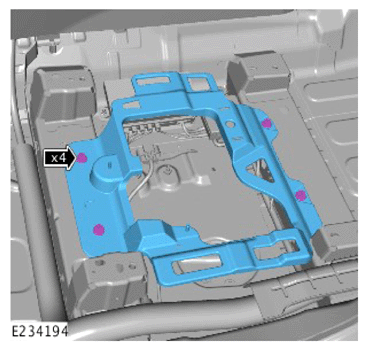

- Remove the 4 retainers.
- Remove the support bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

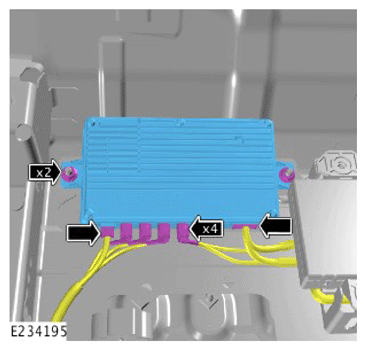

- Disconnect the 6 electrical connectors.
- Remove the 2 nuts.
- Remove the parking aid camera module.
