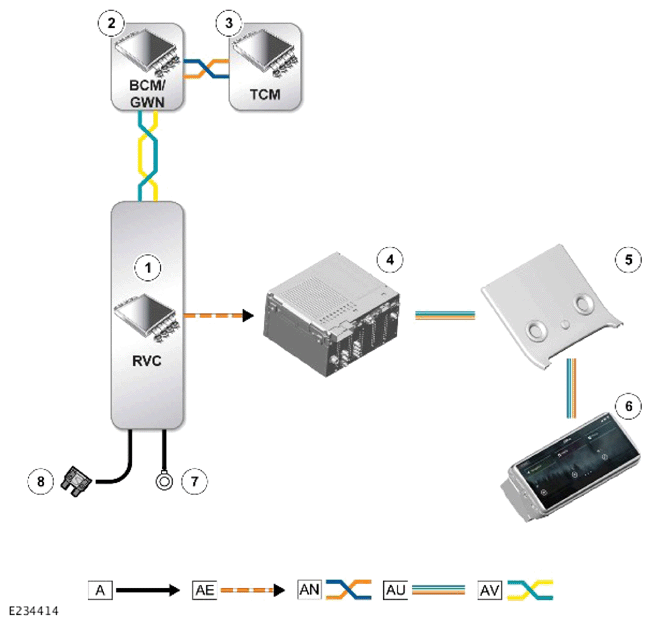

Control Diagram - 3 Of 5 - Rear View Camera (RVC) System
A = HARDWIRED: AE = LOW-VOLTAGE DIFFERENTIAL SIGNALLING (LVDS): AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS: AU = AUTOMOTIVE PIXEL LINK 2 (APIX2): AV = HS CAN COMFORT SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Rear View Camera (RVC) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Transmission Control Module (TCM) |
| 4 | Infotainment Master Controller (IMC) |
| 5 | Interactive Control Display Module (ICDM) |
| 6 | Interactive Display Module 'A' (IDMA) |
| 7 | Ground |
| 8 | Power supply |
