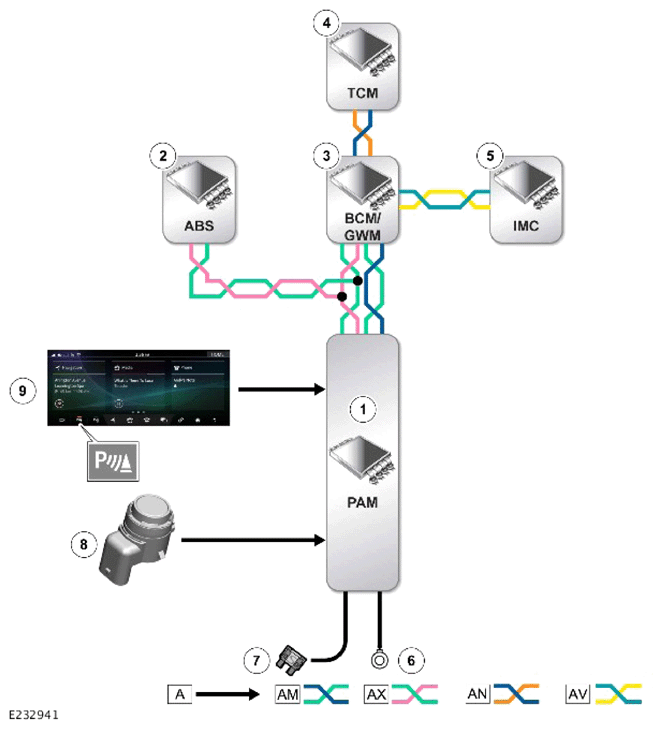

Control Diagram - 1 Of 5 - Parking Aid
A = HARDWIRED: AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AN = HS CAN POWERTRAIN SYSTEMS BUS: AV = HS CAN COMFORT SYSTEMS BUS: AX = FLEXRAY.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Parking Assist Control Module (PAM) |
| 2 | Anti-lock Brake System (ABS) control module |
| 3 | Body Control Module/Gateway Module (BCM/GWM) |
| 4 | Transmission Control Module (TCM) |
| 5 | Infotainment Master Controller (IMC) |
| 6 | Ground |
| 7 | Power supply |
| 8 | Parking aid sensor (quantity 8) |
| 9 | Parking aid soft key |
